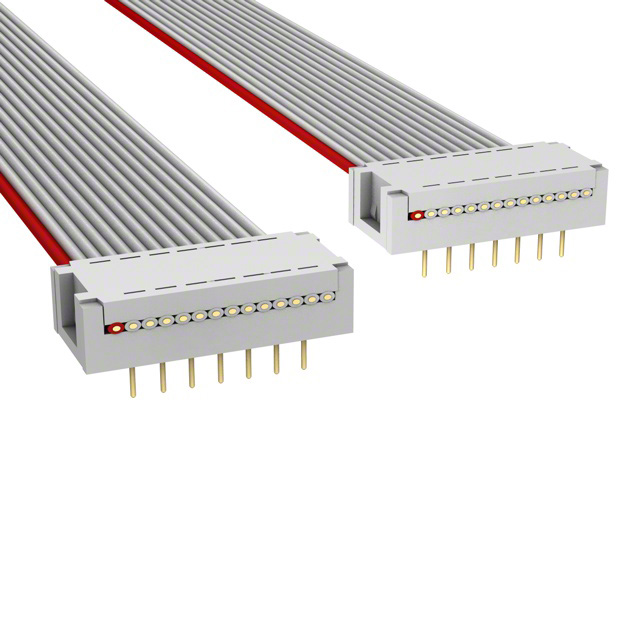

H6PPH-1406G
UnknownAssmann WSW Components
DIP CABLE - HDP14H/AE14G/HDP14H
Deep-Dive with AI
Search across all available documentation for this part.
H6PPH-1406G
UnknownAssmann WSW Components
DIP CABLE - HDP14H/AE14G/HDP14H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H6PPH-1406G |
|---|---|
| Cable Termination | IDC |
| Connector Type | DIP to DIP |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Length | 152.4 mm |
| Length | 6 " |
| Length | 0.5 ' |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
| Usage | Socket (0.3"), Board In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
H6PPH-14 Series
14 Position Cable Assembly Rectangular DIP to DIP 0.500' (152.40mm, 6.00")
