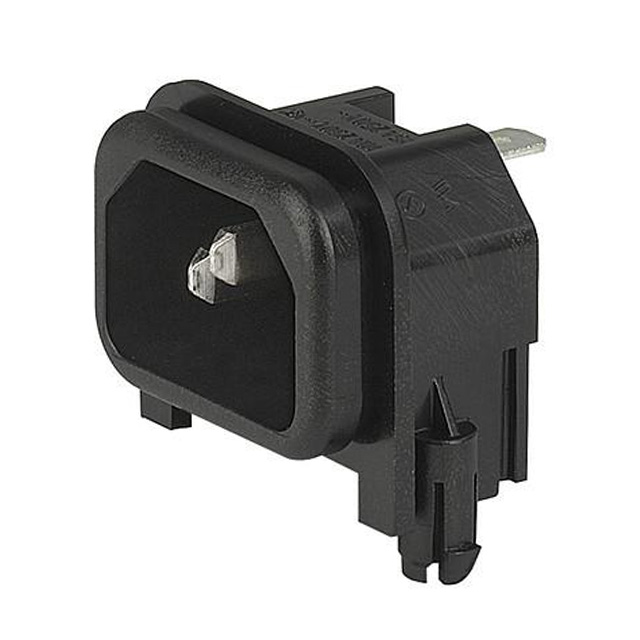

GSP2.8201.13

Active

SCHURTER Inc.

CONNECTOR: AC SUPPLY; SOCKET; MALE; 10A; 250VAC; C14 (E); GSP2; IP40

Search across all available documentation for this part.

Active

SCHURTER Inc.

CONNECTOR: AC SUPPLY; SOCKET; MALE; 10A; 250VAC; C14 (E); GSP2; IP40

Technical Specifications

Parameters and characteristics for this part

Specification	GSP2.8201.13

Accomodates a Fuse	False
Approval Agency	ENEC, CCC, cURus
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount, Snap-In
Panel Cutout Dimensions [x]	30.3 mm
Panel Cutout Dimensions [y]	22.5 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	Solder, Quick Connect - 0.189" (4.8mm)
Voltage Rating - Appliance Inlet	250 VAC

Part	Connector Type	Approval Agency	Ingress Protection	Mounting Type	Panel Thickness [custom]	Panel Thickness [custom]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - Appliance Inlet	Termination	Current Rating - Appliance Inlet	Connector Style	Filter Type	Material Flammability Rating	Panel Thickness [x]	Panel Thickness [x]	Features	Panel Thickness	Panel Thickness
SCHURTER Inc. GSP2.8201.13	Male Blades Receptacle	CCC cURus ENEC	IP40	Panel Mount Snap-In Through Hole Right Angle	0.059 in	1.5 mm	30.3 mm	22.5 mm	250 VAC	Solder Quick Connect - 0.189" (4.8mm)	10 A	IEC 320-C14	Unfiltered - Commercial	UL94 V-0
SCHURTER Inc. GSP2.8201.15	Male Blades Receptacle	CCC cURus ENEC	IP40	Panel Mount Snap-In Through Hole Right Angle			30.3 mm	22.5 mm	250 VAC	Solder Quick Connect - 0.189" (4.8mm)	10 A	IEC 320-C14	Unfiltered - Commercial	UL94 V-0	2.5 mm	0.098 in
SCHURTER Inc. GSP2.8113.13	Male Blades Receptacle	CCC cURus ENEC	IP40	Panel Mount Flange Through Hole Right Angle	0.059 in	1.5 mm	30.3 mm	22.5 mm	250 VAC	Solder Quick Connect - 0.189" (4.8mm)	10 A	IEC 320-C14	Unfiltered - Commercial	UL94 V-0			Terminating Cover
SCHURTER Inc. GSP2.8113.11	Male Blades Receptacle	CCC cURus ENEC	IP40	Panel Mount Flange Through Hole Right Angle			30.3 mm	22.5 mm	250 VAC	Solder Quick Connect - 0.189" (4.8mm)	10 A	IEC 320-C14	Unfiltered - Commercial	UL94 V-0			Terminating Cover	1 mm	0.039 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In; Through Hole, Right Angle
