Technical Specifications
Parameters and characteristics for this part
| Specification | 1SS387FN2_R1_00001 |
|---|---|
| Capacitance @ Vr, F | 0.5 pF |
| Current - Average Rectified (Io) | 150 mA |
| Current - Reverse Leakage @ Vr | 500 nA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |

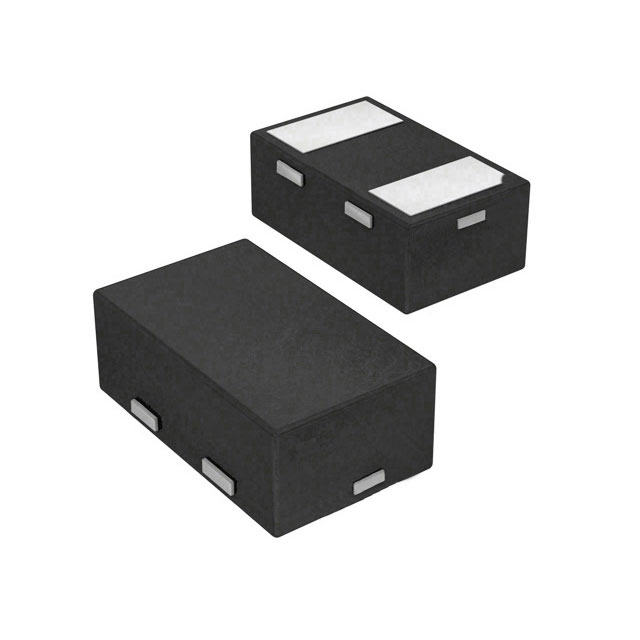

| Package / Case | 0402 (1006 Metric) |
| Reverse Recovery Time (trr) | 1.6 ns |
| Speed | Any Speed |
| Speed | 200 mA |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 80 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.18 | |
| 10 | $ 0.11 | |||
| 100 | $ 0.07 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.04 | |||
| 2000 | $ 0.04 | |||
| Digi-Reel® | 1 | $ 0.18 | ||
| 10 | $ 0.11 | |||
| 100 | $ 0.07 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.04 | |||
| 2000 | $ 0.04 | |||
| Tape & Reel (TR) | 8000 | $ 0.03 | ||
| 16000 | $ 0.03 | |||
| 24000 | $ 0.03 | |||
| 40000 | $ 0.02 | |||
| 56000 | $ 0.02 | |||
| 80000 | $ 0.02 | |||
| 200000 | $ 0.02 | |||
| 400000 | $ 0.02 | |||
Description
General part information
1SS387FN2 Series
Diode 80 V 150mA Surface Mount 2-DFN (1x0.6)
