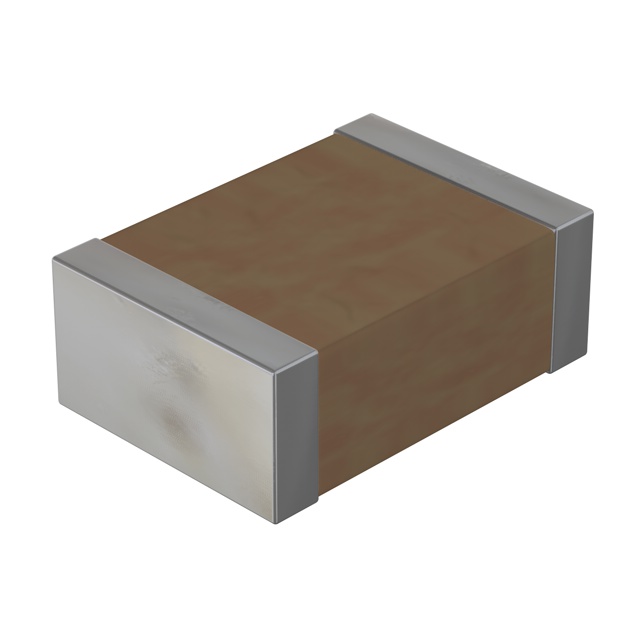

1812B103K102NT
ActiveKnowles Johanson Manufacturing
CAP CER 10000PF 1KV X7R 1812
Deep-Dive with AI
Search across all available documentation for this part.
1812B103K102NT
ActiveKnowles Johanson Manufacturing
CAP CER 10000PF 1KV X7R 1812
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1812B103K102NT |
|---|---|
| Applications | SMPS Filtering |
| Capacitance | 10000 pF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension [x] | 0.18 " |
| Size / Dimension [x] | 4.57 mm |
| Size / Dimension [y] | 3.18 mm |
| Size / Dimension [y] | 0.125 in |
| Temperature Coefficient | X7R |
| Thickness (Max) [Max] | 0.065 in |
| Thickness (Max) [Max] | 1.65 mm |
| Tolerance | 10 % |
| Voltage - Rated | 1 kV |
| Voltage - Rated | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.04 | |
| 10 | $ 1.57 | |||
| 50 | $ 1.44 | |||
| 100 | $ 1.19 | |||
| Digi-Reel® | 1 | $ 2.04 | ||
| 10 | $ 1.57 | |||
| 50 | $ 1.44 | |||
| 100 | $ 1.19 | |||
| Tape & Reel (TR) | 500 | $ 0.25 | ||
| 1000 | $ 0.24 | |||
Description
General part information
1812B Series
10000 pF ±10% 1000V (1kV) Ceramic Capacitor X7R 1812 (4532 Metric)
Documents
Technical documentation and resources
No documents available
