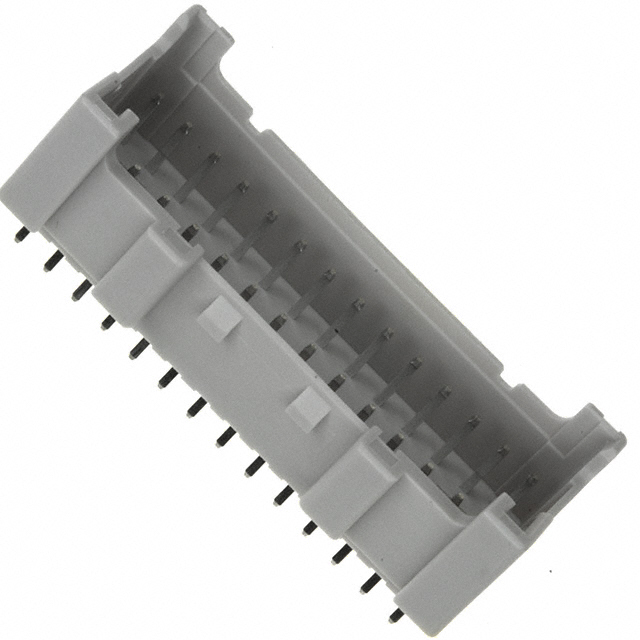

B28B-PNDZS-1

Active

JST Sales America Inc.

CONN HEADER VERT 28POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 28POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B28B-PNDZS-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Ivory
Insulation Height [z]	9.91 mm
Insulation Height [z]	0.39 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	12.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	28
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	5 mm
Row Spacing - Mating	0.197 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Fastening Type	Number of Positions Loaded	Insulation Color	Mated Stacking Heights	Pitch - Mating [x]	Pitch - Mating [x]	Shrouding	Contact Shape	Style	Termination	Contact Finish - Post	Connector Type	Contact Type	Contact Length - Post	Contact Length - Post [x]	Mounting Type	Voltage Rating	Contact Material	Insulation Height [z]	Insulation Height [z]	Number of Rows	Current Rating (Amps)	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Features	Insulation Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]
JST Sales America Inc. B28B-PNDZS-1	Locking Ramp	All	Ivory	12.9 mm	0.079 in	2 mm	Shrouded - 4 Wall	Square	Board to Cable/Wire	Solder	Tin	Header	Male Pin	3.2 mm	0.126 in	Through Hole	250 VDC	Copper Alloy	9.91 mm	0.39 in	2	3 A	28	5 mm	0.197 in	Board Guide	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 28 position 0.079" (2.00mm)
