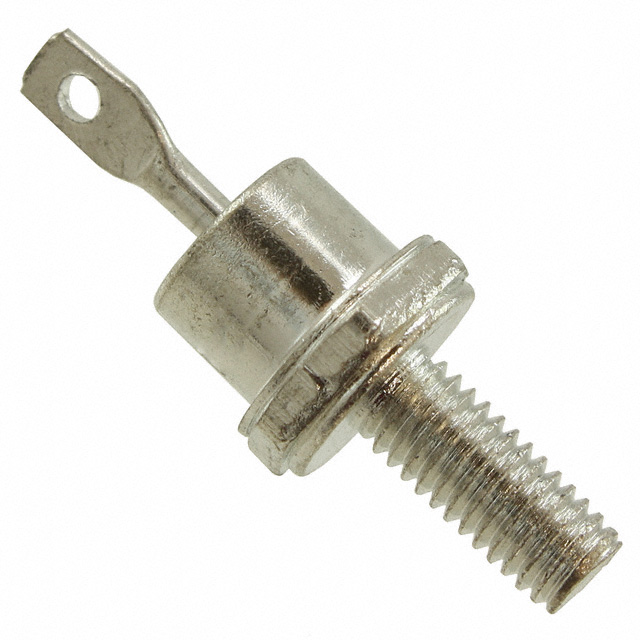

1N3881R

Active

GeneSiC Semiconductor

DIODE GEN PURP REV 200V 6A DO4

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE GEN PURP REV 200V 6A DO4

Technical Specifications

Parameters and characteristics for this part

Specification	1N3881R

Current - Average Rectified (Io)	6 A
Current - Reverse Leakage @ Vr	15 µA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	Stud, DO-203AA, DO-4
Reverse Recovery Time (trr)	200 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-4
Technology	Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	1.4 V

Part	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Current - Reverse Leakage @ Vr	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Mounting Type	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Current - Average Rectified (Io)
GeneSiC Semiconductor 1N3881R	1.4 V	DO-4	15 µA	DO-203AA DO-4 Stud	150 °C	-65 C	200 mA 500 ns	Chassis Stud Mount	Reverse Polarity Standard	200 V	200 ns	6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 200 V 6A Chassis, Stud Mount DO-4
