ER6230QI
ObsoleteAltera
IC REG BUCK PROG 0.75V 3A 24QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ER6230QI
ObsoleteAltera
IC REG BUCK PROG 0.75V 3A 24QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ER6230QI |
|---|---|
| Current - Output | 3 A |
| Frequency - Switching | 1.9 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Programmable |

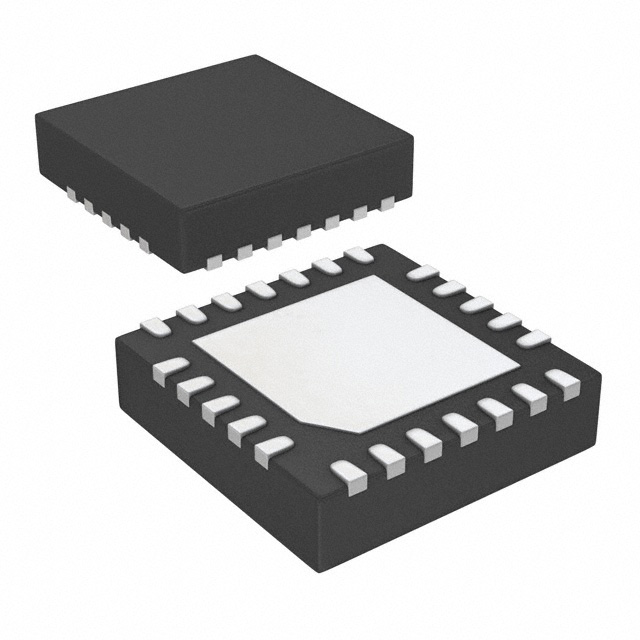

| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 6.6 V |
| Voltage - Input (Min) [Min] | 2.7 V |
| Voltage - Output (Max) | 6.33 V |
| Voltage - Output (Min/Fixed) | 0.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ER6230 Series
Buck Switching Regulator IC Positive Programmable 0.75V 1 Output 3A 24-VFQFN Exposed Pad
