OPB491L11Z
ActiveTT Electronics/Optek Technology
SENSOR OPTICAL 3.18MM MOD WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OPB491L11Z
ActiveTT Electronics/Optek Technology
SENSOR OPTICAL 3.18MM MOD WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OPB491L11Z |
|---|---|
| Current - Supply | 7.5 mA |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | NPN - Open Collector, Buffer |
| Package / Case | Wire Leads, Module |
| Response Time | 50 ns |
| Sensing Distance | 0.125 " |
| Sensing Distance | 3.18 mm |
| Sensing Method | Through-Beam |
| Voltage - Supply [Max] | 16 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.54 | |
| 100 | $ 5.16 | |||
| 250 | $ 4.97 | |||
| 500 | $ 4.79 | |||
| 1000 | $ 4.61 | |||
Description
General part information
OPB491 Series

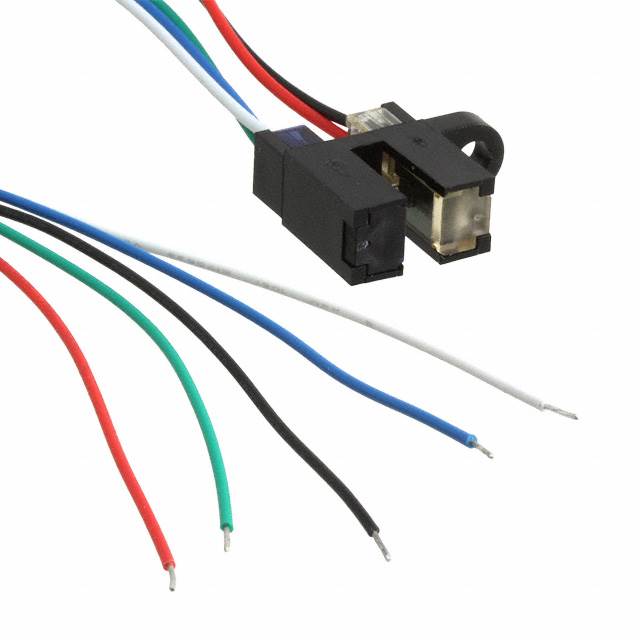

Optical Sensor Through-Beam 0.125" (3.18mm) Module, Wire Leads
