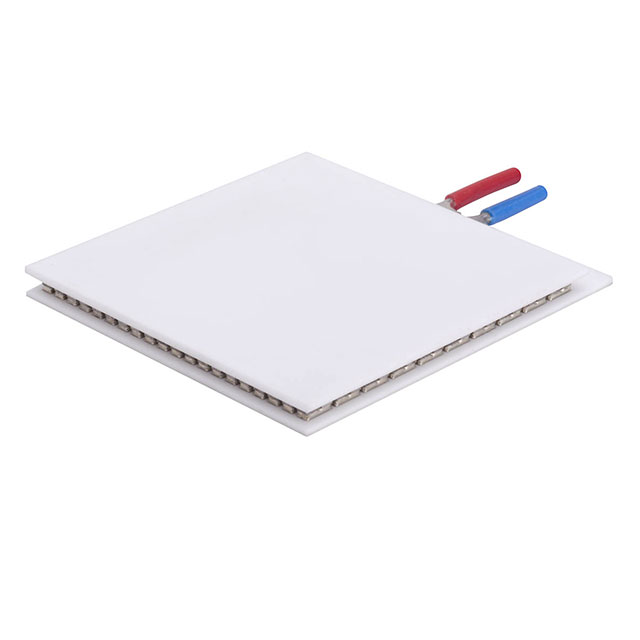

430856-500
Laird Thermal Systems, Inc.
PELTIER UT15,200,F2,4040,TA,W6
Deep-Dive with AI
Search across all available documentation for this part.
430856-500
Laird Thermal Systems, Inc.
PELTIER UT15,200,F2,4040,TA,W6
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430856-500 |
|---|---|
| Current - Max [Max] | 15.4 A |
| Delta Tmax @ Th | 68 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 3.3 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 236.6 W |
| Resistance | 1.37 Ohms |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [y] | 40 mm |
| Voltage - Max [Max] | 25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 83.52 | |
| 5 | $ 78.49 | |||
| 10 | $ 76.43 | |||
| 25 | $ 73.78 | |||
| 50 | $ 71.83 | |||
| 100 | $ 69.94 | |||
Description
General part information
430856 Series
Peltier Module 236.6W @ 25°C 15.4 A 80°C
Documents
Technical documentation and resources
