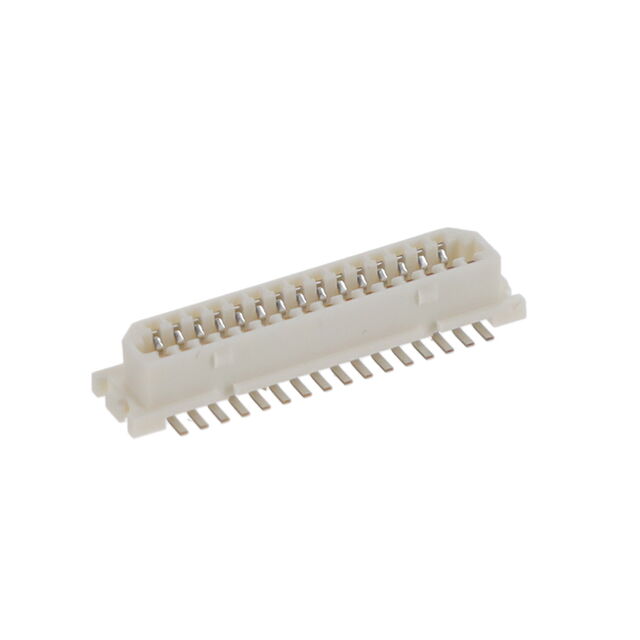

DF9C-31S-1V(20)

Active

Hirose Electric USA, Inc.

BOARD CONNECTOR, 31 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, SURFACE MOUNT TERMINAL, RECEPTACLE,

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

BOARD CONNECTOR, 31 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, SURFACE MOUNT TERMINAL, RECEPTACLE,

Technical Specifications

Parameters and characteristics for this part

Specification	DF9C-31S-1V(20)

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Tin
Height Above Board	0.13 in
Height Above Board	3.3 mm
Mated Stacking Heights [z]	4.3 mm
Mounting Type	Surface Mount
Number of Positions	31
Number of Rows	2
Pitch [x]	0.039 in
Pitch [x]	1 mm

Part	Mated Stacking Heights [z]	Height Above Board	Height Above Board	Number of Positions	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Pitch [x]	Pitch [x]	Contact Finish
Hirose Electric USA, Inc. DF9C-31S-1V(22)	4.3 mm	0.13 in	3.3 mm	31	Surface Mount	39.4 Áin	1 Ám	2	Receptacle Outer Shroud Contacts	0.039 in	1 mm	Tin
Hirose Electric USA, Inc. DF9C-31P-1V(20)		0.13 in	3.3 mm	31	Surface Mount			2	Header Center Strip Contacts	0.039 in	1 mm	Tin
Hirose Electric USA, Inc. DF9C-41P-1V(20)	4.3 mm	0.13 in	3.3 mm	41	Surface Mount			2	Header Center Strip Contacts	0.039 in	1 mm	Tin
Hirose Electric USA, Inc. DF9C-31S-1V(20)	4.3 mm	0.13 in	3.3 mm	31	Surface Mount			2	Receptacle Outer Shroud Contacts	0.039 in	1 mm	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

31 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Tin
