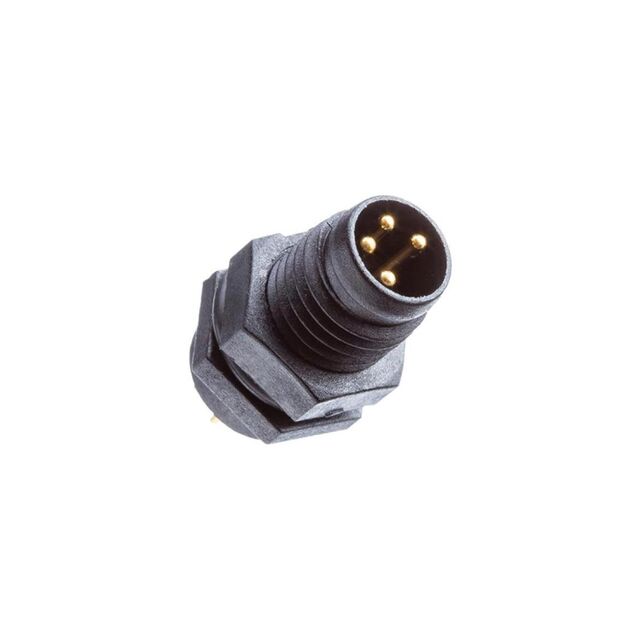

8P-04PMMS-SF7001

Active

Amphenol LTW

SENSOR CONN, M8, PLUG, 4POS, PANEL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol LTW

SENSOR CONN, M8, PLUG, 4POS, PANEL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	8P-04PMMS-SF7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	M8-4
Shielding	Unshielded
Voltage Rating	30 VDC

Part	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Material Flammability Rating	Shielding	Shell Material	Mounting Feature	Contact Material	Current Rating (Amps)	Color	Contact Finish - Mating	Ingress Protection	Number of Positions	Shell Size - Insert	Orientation	Voltage Rating	Primary Material
Amphenol LTW 8P-04PMMS-SF7001	Male Pins Receptacle	-40 °C	105 ░C	Polyamide (PA) Nylon Glass Filled	UL94 V-0	Unshielded	Glass Filled Nylon Polyamide (PA)	Bulkhead - Front Side Nut	Copper Alloy	3 A	Black	Gold	IP67 - Dust Tight Waterproof	4	M8-4	Keyed	30 VDC	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
