Q-3603D0008001M

Active

Amphenol Custom Cable

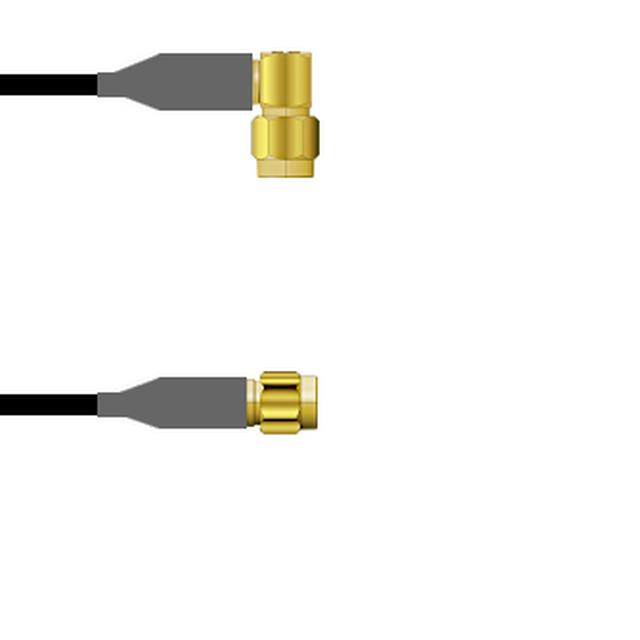

COAX CBL SMA TO SMA 3.3'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO SMA 3.3'

Technical Specifications

Parameters and characteristics for this part

Part	Cable Type	1st Connector	Style	2nd Connector Mounting Type	Overall Impedance	1st Connector Mounting Type	2nd Connector	Connector Impedance	Features	Frequency - Max [Max]	Color	Cable Impedance	Length	Length	1st Contact Gender	2nd Contact Gender	Length
Amphenol Custom Cable Q-3603D0008.75M	RG-58	Right Angle SMA Plug	SMA to SMA	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	SMA Plug	50 Ohms	Shielded	1 GHz	Black	50 Ohms	29.53 "	750 mm	Male	Male
Amphenol Custom Cable Q-3603D0008001M	RG-58	Right Angle SMA Plug	SMA to SMA	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	SMA Plug	50 Ohms	Shielded	1 GHz	Black	50 Ohms	39.4 in	1 m	Male	Male	3.3 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMA RG-58 39.4" (1.0m) 3.3'

Technical documentation and resources

No documents available
