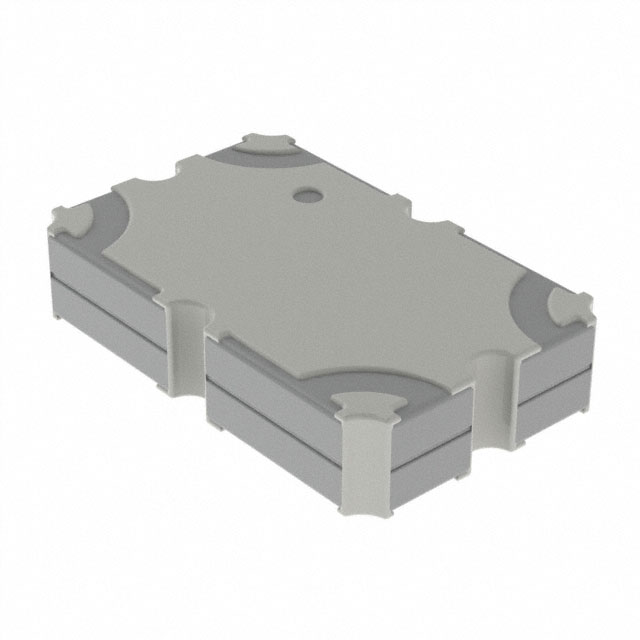

X3C19P1-05S
ActiveTTM Technologies, Inc.
RF DIR COUPLER 1.7GHZ-2GHZ SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
X3C19P1-05S
ActiveTTM Technologies, Inc.
RF DIR COUPLER 1.7GHZ-2GHZ SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | X3C19P1-05S |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 5 dB |
| Frequency [Max] | 2 GHz |
| Frequency [Min] | 1.7 GHz |
| Insertion Loss | 0.15 dB |
| Package / Case | 4-SMD, No Lead |
| Power - Max [Max] | 70 W |
| Supplier Device Package | SMD |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.71 | |
| 10 | $ 4.08 | |||
| 25 | $ 3.85 | |||
| 100 | $ 3.55 | |||
| 250 | $ 3.37 | |||
| 500 | $ 3.24 | |||
| 1000 | $ 3.12 | |||
| Digi-Reel® | 1 | $ 4.71 | ||
| 10 | $ 4.08 | |||
| 25 | $ 3.85 | |||
| 100 | $ 3.55 | |||
| 250 | $ 3.37 | |||
| 500 | $ 3.24 | |||
| 1000 | $ 3.12 | |||
| Tape & Reel (TR) | 2000 | $ 2.42 | ||
Description
General part information
X3C19P1 Series
RF Directional Coupler General Purpose 1.7GHz ~ 2GHz 5dB 70W 4-SMD, No Lead
