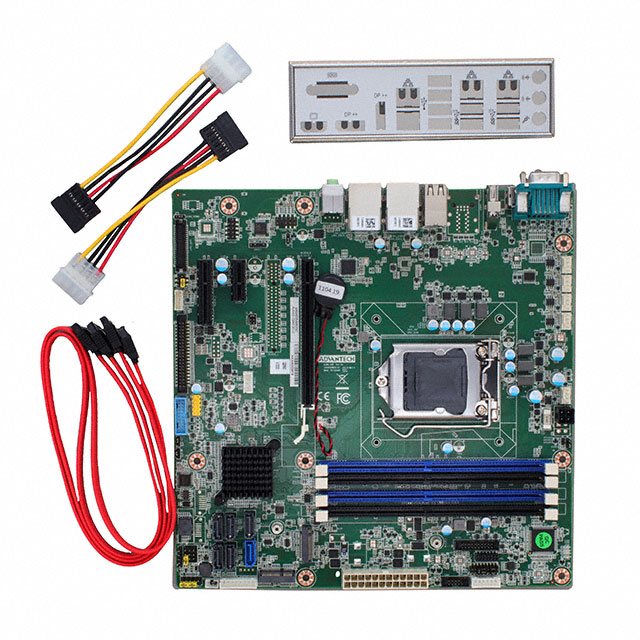

AIMB-586QG2-00A1E
ActiveAdvantech Corp
SBC 3.7GHZ 2/4/6/8CR 128GB/0GB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AIMB-586QG2-00A1E |
|---|---|
| Core Processor | Intel 8th Gen Core Xeon, Intel 8th Gen Core Pentium, Intel 8th Gen Core i7, Intel 8th Gen Core i3, Intel 8th Gen Core i5 |
| Digital I/O Lines | 16 |
| Ethernet [custom] | 4 |
| Ethernet [custom] | 2 |
| Expansion Site/Bus | LAN, PCIe |
| Form Factor | Micro-ATX (without Processor) |
| Number of Cores | 4, 8, 6, 2 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) [Max] | 80 W |
| Power (Watts) [Min] | 25 W |
| RAM Capacity/Installed | 0 GB, 128 GB |
| RS-232 (422, 485) | 6 |
| Size / Dimension [x] | 9.61 in |
| Size / Dimension [x] | 244.09 mm |
| Size / Dimension [y] | 244.09 mm |
| Size / Dimension [y] | 9.61 in |
| Speed [Max] | 3.7 GHz |
| Speed [Min] | 1.8 GHz |
| Storage Interface | SATA 3.0 (6) |
| USB | USB 2.0 (8), USB 3.1 (4), USB 3.0 (2) |
| Video Outputs | HDMI, LVDS, DVI, DP |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 410.00 | |
Description
General part information
AIMB-586 Series
Single Board Computer 1.8GHz ~ 3.7GHz 2/4/6/8 Core 128GB/0GB RAM Intel 8th Gen Core i7/ i5/i3/Pentium/Xeon
