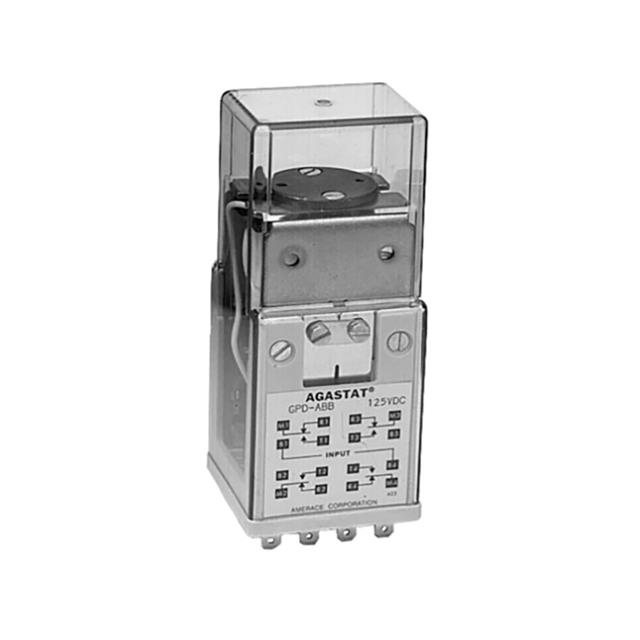

3-1423155-5

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE

Technical Specifications

Parameters and characteristics for this part

Part	Contact Rating (Current)	Must Operate Voltage	Coil Type	Contact Material	Features	Coil Voltage	Release Time	Contact Form	Operate Time	Approval Agency	Mounting Type	Operating Temperature [Max]	Must Release Voltage	Relay Type	Termination Style
TE Connectivity Potter & Brumfield Relays GPBN	10 A	18 VDC	Non Latching	Silver (Ag)	Magnetic Blowout	24 VDC	30 ms	4PDT (4 Form C)	15 ms	CSA UR	Socketable	60 °C	2.4 VDC	General Purpose	Plug In
TE Connectivity Potter & Brumfield Relays GPCN	10 A		Non Latching	Silver (Ag)		48 VDC	30 ms	4PDT (4 Form C)	15 ms	CSA UR	Socketable	60 °C		General Purpose	Plug In
TE Connectivity Potter & Brumfield Relays 3-1423155-5	10 A	18 VDC	Non Latching	Silver (Ag)		24 VDC	30 ms	4PDT (4 Form C)	15 ms	CSA UR	Socketable	60 °C	2.4 VDC	General Purpose	Plug In
TE Connectivity Potter & Brumfield Relays 3-1423155-4	10 A	18 VDC	Non Latching	Silver (Ag)		24 VDC	30 ms	4PDT (4 Form C)	15 ms	CSA UR	Socketable	60 °C	2.4 VDC	General Purpose	Plug In
TE Connectivity Potter & Brumfield Relays GPB	10 A	18 VDC	Non Latching	Silver (Ag)		24 VDC	30 ms	4PDT (4 Form C)	15 ms	CSA UR	Socketable	60 °C		General Purpose	Plug In
TE Connectivity Potter & Brumfield Relays 3-1423155-1	10 A	36 VDC	Non Latching	Silver (Ag)		48 VDC	30 ms	4PDT (4 Form C)	15 ms	CSA UR	Socketable	60 °C	4.8 VDC	General Purpose	Plug In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3	$ 780.03

General part information

General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable
