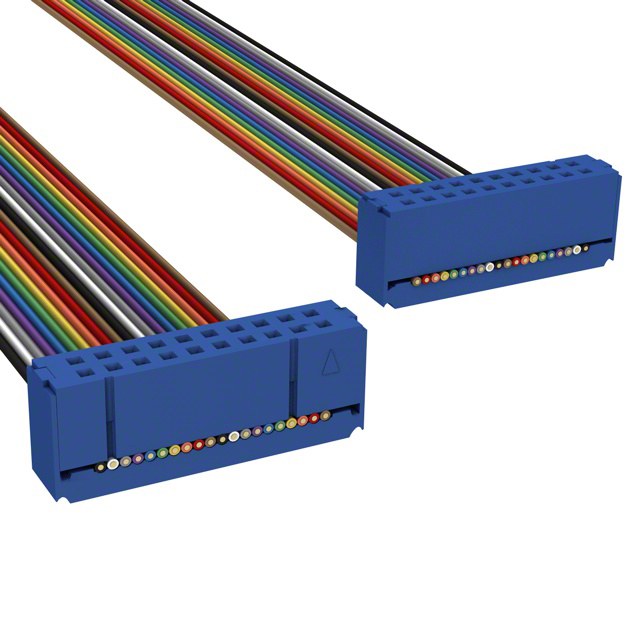

C3AAS-2036M

Active

CW Industries

IDC CABLE - CSC20S/AE20M/CSC20S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSC20S/AE20M/CSC20S

Technical Specifications

Parameters and characteristics for this part

Part	Pitch - Cable	Pitch - Cable	Number of Positions	Pitch - Connector	Pitch - Connector	Connector Type	Shielding	Cable Termination	Contact Finish	Length	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Length [x]	Length [x]	Color
CW Industries C3AAS-2006G	0.05 "	1.27 mm	20	0.1 in	2.54 mm	Socket to Socket	Unshielded	IDC	Tin	152.4 mm	6 "	0.5 '	2.54 µm	100 µin	2
CW Industries C3AAS-2636M	0.05 "	1.27 mm	26	0.1 in	2.54 mm	Socket to Socket	Unshielded	IDC	Tin				2.54 µm	100 µin	2	3 ft	914.4 mm	Multiple Ribbon
CW Industries C3AAS-2606M	0.05 "	1.27 mm	26	0.1 in	2.54 mm	Socket to Socket	Unshielded	IDC	Tin	152.4 mm	6 "	0.5 '	2.54 µm	100 µin	2			Multiple Ribbon
CW Industries C3AAS-2618M	0.05 "	1.27 mm	26	0.1 in	2.54 mm	Socket to Socket	Unshielded	IDC	Tin				2.54 µm	100 µin	2	1.5 ft	457.2 mm	Multiple Ribbon
CW Industries C3AAS-2636G	0.05 "	1.27 mm	26	0.1 in	2.54 mm	Socket to Socket	Unshielded	IDC	Tin				2.54 µm	100 µin	2	3 ft	914.4 mm
CW Industries C3AAS-2036M	0.05 "	1.27 mm	20	0.1 in	2.54 mm	Socket to Socket	Unshielded	IDC	Tin				2.54 µm	100 µin	2	3 ft	914.4 mm	Multiple Ribbon
CW Industries C3AAS-2618G	0.05 "	1.27 mm	26	0.1 in	2.54 mm	Socket to Socket	Unshielded	IDC	Tin				2.54 µm	100 µin	2	1.5 ft	457.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)
