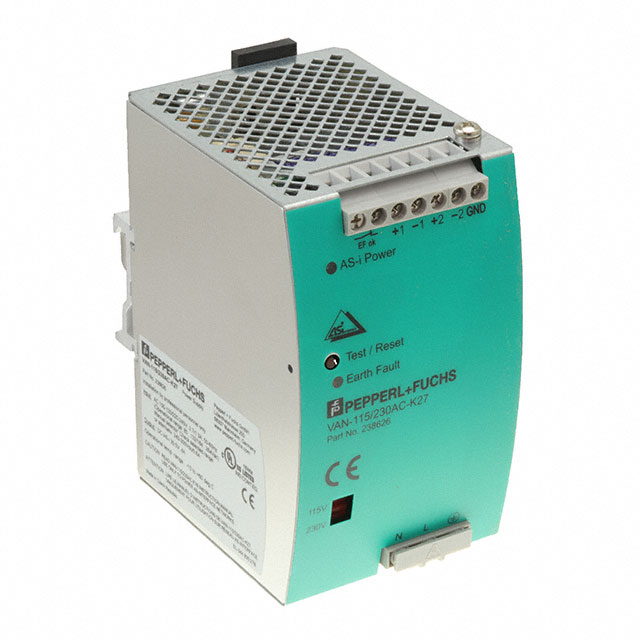

VAN-115/230AC-K27
ActivePEPPERL+FUCHS
AS-INTERFACE (EXCLUDING SENSORS)
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VAN-115/230AC-K27
ActivePEPPERL+FUCHS
AS-INTERFACE (EXCLUDING SENSORS)
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VAN-115/230AC-K27 |
|---|---|
| AC Voltage - Input [Max] | 132 VAC, 264 VAC |
| AC Voltage - Input [Min] | 85 VAC, 184 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | cULus, CE |
| Current - Output (Max) [Max] | 4 A |
| DC Voltage - Input (Max) [Max] | 300 V |
| DC Voltage - Input (Min) [Min] | 240 V |
| Efficiency | 90 % |
| Features | IP20 |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Size / Dimension [x] | 4.02 in |
| Size / Dimension [x] | 102 mm |
| Size / Dimension [y] | 73 mm |
| Size / Dimension [y] | 2.87 " |
| Size / Dimension [z] | 124 mm |
| Size / Dimension [z] | 4.88 " |
| Voltage - Output 1 | 30.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
VAN-115 Series
AS-INTERFACE (EXCLUDING SENSORS)
