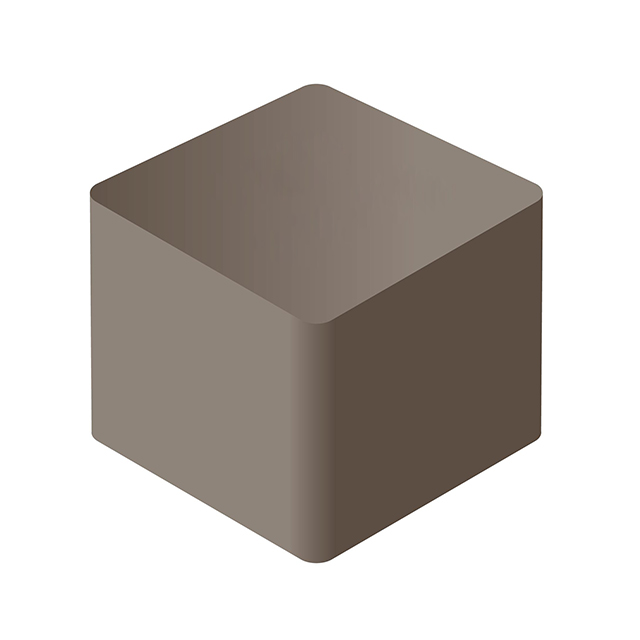

SRP6060FA-6R8M
ActiveBourns Inc.
IND,6.6X6.4X5.8MM,6.8UH,20%,9A,SHD,SMD /TAPE & REEL - 13" REEL
Deep-Dive with AI
Search across all available documentation for this part.
SRP6060FA-6R8M
ActiveBourns Inc.
IND,6.6X6.4X5.8MM,6.8UH,20%,9A,SHD,SMD /TAPE & REEL - 13" REEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRP6060FA-6R8M |
|---|---|
| Current - Saturation (Isat) | 9.2 A |
| DC Resistance (DCR) | 20.8 mOhm |
| Frequency - Self Resonant | 16 MHz |
| Height - Seated (Max) [Max] | 0.236 in |
| Height - Seated (Max) [Max] | 6 mm |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Iron Powder |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.26 ", 6.6 mm |
| Size / Dimension [y] | 6.4 mm, 0.252 " |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.90 | |
| 10 | $ 1.61 | |||
| 25 | $ 1.49 | |||
| 50 | $ 1.33 | |||
| 100 | $ 1.11 | |||
| 250 | $ 1.08 | |||
| Digi-Reel® | 1 | $ 1.90 | ||
| 10 | $ 1.61 | |||
| 25 | $ 1.49 | |||
| 50 | $ 1.33 | |||
| 100 | $ 1.11 | |||
| 250 | $ 1.08 | |||
| Tape & Reel (TR) | 750 | $ 0.98 | ||
| 1500 | $ 0.95 | |||
| 3750 | $ 0.92 | |||
| 5250 | $ 0.89 | |||
| Newark | Each (Supplied on Full Reel) | 1 | $ 1.08 | |
| 1000 | $ 1.02 | |||
| 2000 | $ 0.96 | |||
| 4000 | $ 0.86 | |||
| 6000 | $ 0.83 | |||
| 10000 | $ 0.80 | |||
Description
General part information
SRP6060FA Series
6.8 µH Shielded Drum Core, Wirewound Inductor 9 A 20.8mOhm Max Nonstandard
