R6416-00

Active

Harwin Inc.

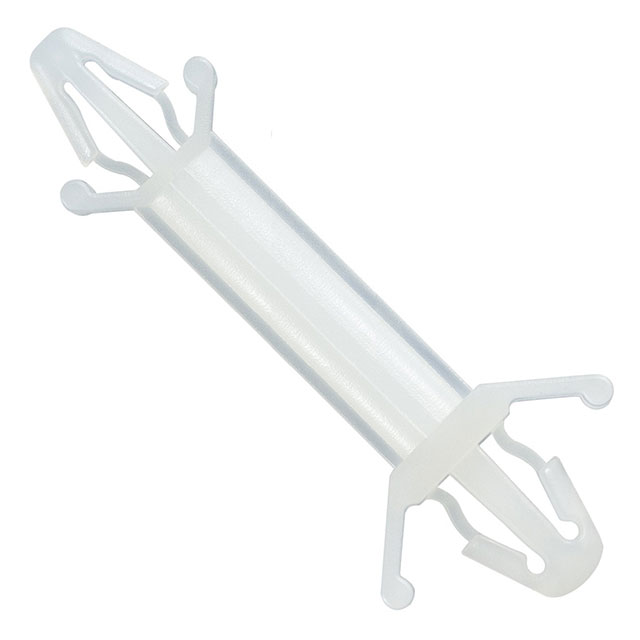

15.90MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

15.90MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	R6416-00

Between Board Height	0.626 in
Between Board Height	15.9 mm
Holding Type	Snap Lock
Length - Overall	32.5 mm
Length - Overall	1.28 in
Material	Nylon
Mounting Hole Diameter	4.8 mm
Mounting Hole Diameter	0.189 in
Mounting Panel Thickness	2.7 mm
Mounting Panel Thickness	0.106 in
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness	1.6 mm
Support Panel Thickness	0.063 in

Part	Mounting Hole Diameter	Mounting Hole Diameter	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Mounting Type	Holding Type	Material	Between Board Height	Between Board Height	Length - Overall	Length - Overall	Support Panel Thickness	Support Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness
Harwin Inc. R6416-00	4.8 mm	0.189 in	0.157 "	3.99 mm	Snap Lock	Snap Lock	Nylon	0.626 in	15.9 mm	32.5 mm	1.28 in	1.6 mm	0.063 in	2.7 mm	0.106 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4000	$ 0.15
Newark	Each	1000	$ 0.16

General part information

Board Support Snap Lock / Snap Lock Nylon 0.626" (15.90mm)
