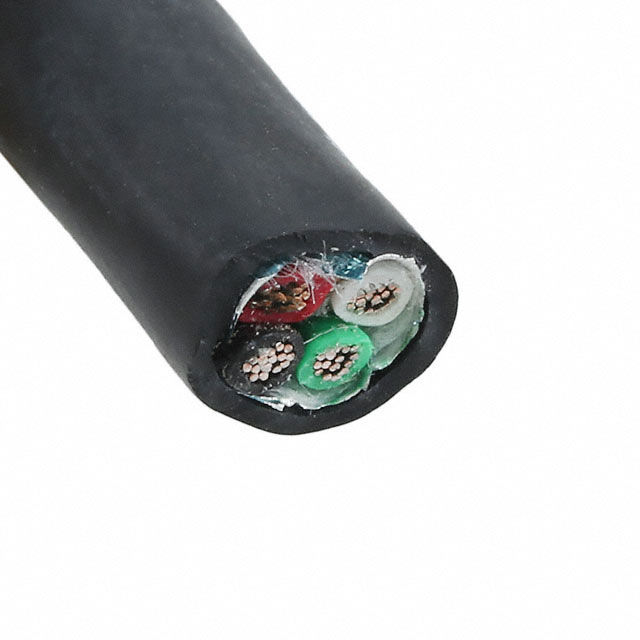

25464 BK199

Active

ALPHA WIRE

CABLE 4COND 20AWG BLK SHLD FEET

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 20AWG BLK SHLD FEET

Technical Specifications

Parameters and characteristics for this part

Specification	25464 BK199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length	Enter Number of Feet in Order Quantity
Number of Conductors	4
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Spool Size	1000 ft
Spool Size	304.8 m
Voltage	300 V
Wire Gauge	20 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Wire Gauge	Jacket (Insulation) Material	Shield Coverage	Features	Jacket Color	Shield Type	Conductor Material	Length	Cable Type	Shield Material	Spool Size	Spool Size	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Number of Conductors	Conductor Insulation	Length	Length
ALPHA WIRE 25464 BK199	-30 ░C	90 °C	300 V	20 AWG	Polyurethane (PU)	100 %	Biological Compatibility Drain Wire Rip Cord	Black	Foil	Copper Tinned	Enter Number of Feet in Order Quantity	Multi-Conductor	Aluminum	1000 ft	304.8 m	28	7	ISO 10993 UL Style 20668	4	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 25464 SL199	-30 ░C	90 °C	300 V	20 AWG	Polyurethane (PU)	100 %	Biological Compatibility Drain Wire Rip Cord	Slate	Foil	Copper Tinned		Multi-Conductor	Aluminum			28	7	ISO 10993 UL Style 20668	4	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Black 20 AWG Foil Enter Number of Feet in Order Quantity
