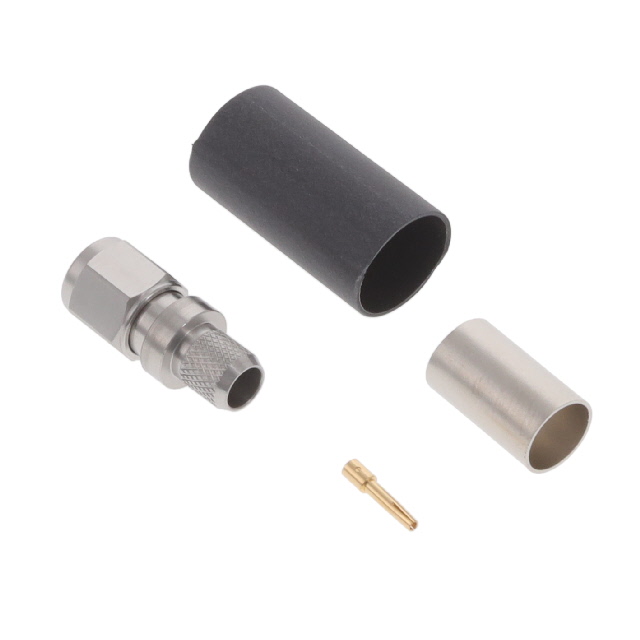

TC-240-SM-RP

Active

Amphenol Times Microwave Systems

SMA-MALE (PLUG) CRIMP/REVERSE PO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TC-240-SM-RP

Active

Amphenol Times Microwave Systems

SMA-MALE (PLUG) CRIMP/REVERSE PO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TC-240-SM-RP

Body Material	Stainless Steel
Cable Group	LMR-240
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Plug, Female Socket
Contact Termination	Solder
Frequency - Max [Max]	2.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

TC-240 Series

Part	Voltage Rating	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Body Material	Connector Style	Center Contact Material	Mounting Type	Impedance	Center Contact Plating	Contact Termination	Cable Group	Connector Type	Dielectric Material	Housing Color	Number of Ports	Shield Termination	Insertion Loss	Ingress Protection	Fastening Type	Mating Cycles	Includes
Amphenol Times Microwave Systems TC-240-NM-75	500 V	Nickel	85 °C	-40 °C	2 GHz	Brass	N Type	Brass	Free Hanging (In-Line)	75 Ohms	Gold	Solder	LMR-240-75	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Silver	1	Crimp
Amphenol Times Microwave Systems TC-240-NMC		Silver	165 °C	-65 ░C	11 GHz	Brass	N Type	Brass	Free Hanging (In-Line)	50 Ohms	Gold	Solder	LMR-240	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Silver	1	Clamp
Amphenol Times Microwave Systems TC-240-FMH-75		Nickel	165 °C	-65 ░C	2 GHz	Brass	F Type	Beryllium Copper	Free Hanging (In-Line)	75 Ohms	Gold	Solder	LMR-240-75	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Silver	1	Crimp
Amphenol Times Microwave Systems TC-240-716M-RA-D		White Bronze	85 °C	-40 °C	3 GHz	Brass	7/16 DIN	Brass	Free Hanging (In-Line) Right Angle	50 Ohms	Gold	Solder	LMR-240	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Silver	1	Crimp	0.1 dB	IP67 - Dust Tight Waterproof
Amphenol Times Microwave Systems TC-240-BM-RA-D	500 V	White Bronze	165 °C	-65 ░C	6000 MHz	Brass	BNC	Brass	Free Hanging (In-Line) Right Angle	50 Ohms	Gold	Solder	LMR-240	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Silver	1	Crimp			Bayonet Lock	500
Amphenol Times Microwave Systems TC-240-BM-75-X	500 V	White Bronze	125 °C	-55 °C	4 GHz	Brass	BNC	Brass	Free Hanging (In-Line)	75 Ohms	Gold	Solder	LMR-240-75	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Silver	1	Crimp			Bayonet Lock	500
Amphenol Times Microwave Systems TC-240-SM-RP			85 °C	-40 °C	2.5 GHz	Stainless Steel	RP-SMA	Beryllium Copper	Free Hanging (In-Line)	50 Ohms	Gold	Solder	LMR-240	Female Socket Plug		Silver	1	Crimp
Amphenol Times Microwave Systems TC-240-BMC	500 V	Silver	85 °C	-40 °C	1 GHz 2.5 GHz	Beryllium Copper Brass	BNC	Brass	Free Hanging (In-Line)	50 Ohms	Gold	Solder	LMR-240	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Silver	1	Clamp	0.1 dB		Bayonet Lock	500
Amphenol Times Microwave Systems TC-240-FMEM-X	500 V	White Bronze	125 °C	-55 °C	2 GHz	Brass	FME	Brass	Free Hanging (In-Line)	50 Ohms	Gold	Solder	LMR-240	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Silver	1	Crimp				500	1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator
Amphenol Times Microwave Systems TC-240-SM-RA-SS-D			125 °C	-40 °C	6000 MHz	Stainless Steel	SMA	Brass	Free Hanging (In-Line) Right Angle	50 Ohms	Gold	Solder	LMR-240	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Silver	1	Crimp				500

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 29.46
		10	$ 22.73
		25	$ 20.60
		50	$ 19.15
		100	$ 17.84
		250	$ 16.30
		500	$ 15.27

Description

General part information

TC-240 Series

RP-SMA Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
