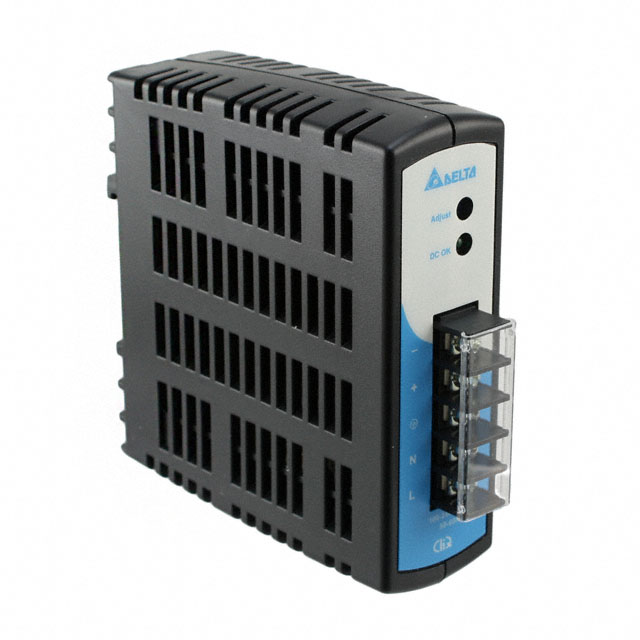

DRP012V030W1AZ
ObsoleteDelta Electronics
AC/DC POWER SUPPLY SINGLE-OUT 12V 2.5A 30W 5-PIN CARTON
Deep-Dive with AI
Search across all available documentation for this part.
DRP012V030W1AZ
ObsoleteDelta Electronics
AC/DC POWER SUPPLY SINGLE-OUT 12V 2.5A 30W 5-PIN CARTON
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DRP012V030W1AZ |
|---|---|
| AC Voltage - Input [Max] | 264 VAC |
| AC Voltage - Input [Min] | 85 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | EN, CE, CB Scheme, EAC, CSA, SIQ, UL |
| Current - Output (Max) [Max] | 2.5 A |
| Efficiency | 85 % |
| Features | Adjustable Output, Universal Input |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 75 ¯C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 3.96 in |
| Size / Dimension [x] | 100.6 mm |
| Size / Dimension [y] | 32 mm |
| Size / Dimension [y] | 1.26 in |
| Size / Dimension [z] | 3.94 in |
| Size / Dimension [z] | 100 mm |
| Standard Number | 55032, 50581, 61000-3-2, 61000-6-2, 61000-3-3, 107.1-01, 60950-1, 55024, 508, 61000-6-1, 55011 |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
DRP012 Series
| Part | Features | Voltage - Output 1 | Approval Agency | Current - Output (Max) [Max] | Number of Outputs | Applications | Standard Number | Input Type | Power (Watts) | Voltage - Isolation | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Efficiency | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | Adjustable Output Universal Input | 12 V | CB Scheme CE CSA EAC EN SIQ UL | 1.25 A | 1 | ITE (Commercial) | 107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 | AC | 15 W | 4000 V | 85 VAC | 264 VAC | 84 % | -20 °C | 80 ¯C | 3.94 in | 32 mm | 1.26 in | 3.96 in | 100.6 mm | 100 mm |
Delta Electronics | Adjustable Output Universal Input | 12 V | CB Scheme CE CSA EAC EN SIQ UL | 2.5 A | 1 | ITE (Commercial) | 107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 | AC | 30 W | 4000 V | 85 VAC | 264 VAC | 85 % | -20 °C | 75 ¯C | 3.94 in | 32 mm | 1.26 in | 3.96 in | 100.6 mm | 100 mm |
Delta Electronics | Adjustable Output Universal Input | 12 V | ATEX EN CB Scheme CE CSA DNV GL EAC EN SIQ UL | 1.25 A | 1 | ITE (Commercial) | 107.1-01 12.12.09 213 50581 508 55011 55024 55032 60079-15 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 | AC | 15 W | 4000 V | 85 VAC | 264 VAC | 84 % | -20 °C | 80 ¯C | 3.94 in | 32 mm | 1.26 in | 3.96 in | 100.6 mm | 100 mm |
Delta Electronics | Adjustable Output Load Sharing Universal Input | 12 V | ATEX EN CB Scheme CE CSA DNV GL EAC EN SIQ UL | 5 A | 1 | ITE (Commercial) | 107.1-01 12.12.09 213 50581 508 55011 55024 55032 60079-15 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 | AC | 4000 V | 85 VAC | 264 VAC | 86 % | -20 °C | 80 ¯C | 4.76 " | 32 mm | 1.26 in | 4.72 in | 120 mm | 121 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 31.93 | |
| 10 | $ 28.06 | |||
| 25 | $ 26.87 | |||
| 40 | $ 25.96 | |||
| 50 | $ 25.85 | |||
| 80 | $ 24.98 | |||
| 100 | $ 24.86 | |||
| 120 | $ 24.41 | |||
| 250 | $ 23.62 | |||
Description
General part information
DRP012 Series
AC/DC POWER SUPPLY SINGLE-OUT 12V 2.5A 30W 5-PIN CARTON
