PXP7010/03P/ST/0507

Active

BULGIN LIMITED

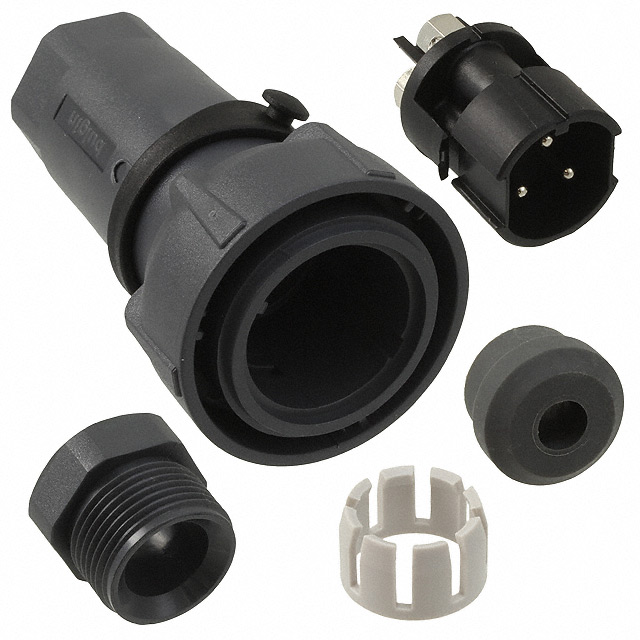

CIRCULAR CONNECTOR, BUCCANEER 7000 SERIES, CABLE MOUNT PLUG, 3 CONTACTS, SCREW PIN

Deep-Dive with AI

Search across all available documentation for this part.

Documents7000 Series Plastic Wiring Instr Datasheet +2

PXP7010/03P/ST/0507

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER 7000 SERIES, CABLE MOUNT PLUG, 3 CONTACTS, SCREW PIN

Deep-Dive with AI

Documents7000 Series Plastic Wiring Instr Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXP7010/03P/ST/0507

Backshell Material, Plating	Polycarbonate/Polybutylene Terephthalate (PBT)
Color	Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	25 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	3
Number of Positions [custom]	1
Number of Positions [custom]	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polycarbonate/Polybutylene Terephthalate (PBT), Halogen Free
Shielding	Unshielded
Termination	Screw
Voltage Rating	600 V

PXP7010 Series

Part	Number of Positions	Connector Type	Voltage Rating	Contact Material	Primary Material	Mounting Type	Orientation	Shielding	Backshell Material, Plating	Ingress Protection	Color	Features	Current Rating (Amps)	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Material Flammability Rating	Fastening Type	Shell Material	Housing Color	Type	Note	Contact Type	Contact Shape	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
BULGIN LIMITED PXP7010/02P/ST/0911	2	Male Pins Plug	600 V	Brass	Plastic	Free Hanging (In-Line)	Keyed	Unshielded	Polycarbonate/Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Gray	Backshell Coupling Nut	25 A	Screw	-40 °C	120 °C	Nickel	UL94 V-0	Bayonet Lock	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free
BULGIN LIMITED PXP7010/10P/CR/0507	10	Plug Housing			Plastic	Free Hanging (In-Line)	Keyed	Unshielded		Dust Tight Water Resistant Waterproof IP66 IP68 IP69K		Backshell Coupling Nut			-40 °C	120 °C		UL94 V-0	Bayonet Lock	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Gray	For Male Pins	Contacts Not Included	Crimp and Solder Cup	Circular
BULGIN LIMITED PXP7010/03P/ST/0507		Male Pins Plug	600 V	Brass	Plastic	Free Hanging (In-Line)	Keyed	Unshielded	Polycarbonate/Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Gray	Backshell Coupling Nut	25 A	Screw	-40 °C	120 °C	Nickel	UL94 V-0	Bayonet Lock	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free						3	1	2
BULGIN LIMITED PXP7010/02S/ST/0911	2	Female Sockets Plug	600 V	Brass	Plastic	Free Hanging (In-Line)	Keyed	Unshielded	Polycarbonate/Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Gray	Backshell Coupling Nut	25 A	Screw	-40 °C	120 °C	Nickel	UL94 V-0	Bayonet Lock	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free
BULGIN LIMITED PXP7010/32S/CR/0709	32	Plug Housing			Plastic	Free Hanging (In-Line)	Keyed	Unshielded		Dust Tight Water Resistant Waterproof IP66 IP68 IP69K		Backshell Coupling Nut			-40 °C	120 °C		UL94 V-0	Bayonet Lock	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Gray	For Female Sockets	Contacts Not Included	Crimp and Solder Cup	Circular
BULGIN LIMITED PXP7010/02P/ST/1315	2	Male Pins Plug	600 V	Brass	Plastic	Free Hanging (In-Line)	Keyed	Unshielded	Polycarbonate/Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Gray	Backshell Coupling Nut	25 A	Screw	-40 °C	120 °C	Nickel	UL94 V-0	Bayonet Lock	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free
BULGIN LIMITED PXP7010/02P/ST/0507	2	Male Pins Plug	600 V	Brass	Plastic	Free Hanging (In-Line)	Keyed	Unshielded	Polycarbonate/Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Gray	Backshell Coupling Nut	25 A	Screw	-40 °C	120 °C	Nickel	UL94 V-0	Bayonet Lock	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free
BULGIN LIMITED PXP7010/32S/CR/0507	32	Plug Housing			Plastic	Free Hanging (In-Line)	Keyed	Unshielded		Dust Tight Water Resistant Waterproof IP66 IP68 IP69K		Backshell Coupling Nut			-40 °C	120 °C		UL94 V-0	Bayonet Lock	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Gray	For Female Sockets	Contacts Not Included	Crimp and Solder Cup	Circular
BULGIN LIMITED PXP7010/02S/ST/0507	2	Female Sockets Plug	600 V	Brass	Plastic	Free Hanging (In-Line)	Keyed	Unshielded	Polycarbonate/Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Gray	Backshell Coupling Nut	25 A	Screw	-40 °C	120 °C	Nickel	UL94 V-0	Bayonet Lock	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free
BULGIN LIMITED PXP7010/06P/ST/0911	6	Male Pins Plug	600 V	Brass	Plastic	Free Hanging (In-Line)	Keyed	Unshielded	Polycarbonate/Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Gray	Backshell Coupling Nut	10 A	Screw	-40 °C	120 °C	Nickel	UL94 V-0	Bayonet Lock	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.48
		10	$ 23.18
		25	$ 22.18
		50	$ 21.47
		100	$ 20.75
		250	$ 19.61
		500	$ 19.03
Newark	Each	10	$ 24.95
		25	$ 23.77
		50	$ 22.59
		100	$ 21.85
		250	$ 20.67
		500	$ 20.23

Description

General part information

PXP7010 Series

3 (2 Power + PE) Position Circular Connector Plug, Male Pins Screw

Documents

Technical documentation and resources

7000 Series Plastic Wiring Instr

Datasheet

7000 Series UL Cert of Compliance

Technical Data Sheet EN

Datasheet
