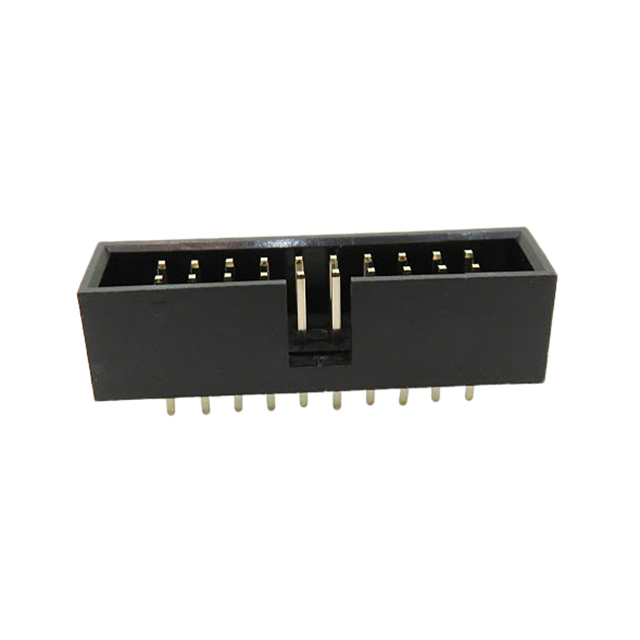

BHR-20-VUA

Active

Adam Tech

CONN HEADER VERT 20POS 2.54MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 20POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	BHR-20-VUA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Polarizing Key
Insulation Height	0.358 in
Insulation Height	9.1 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-50 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Positions Loaded	Shrouding	Style	Termination	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Number of Rows	Insulation Material	Contact Length - Post	Contact Length - Post [x]	Contact Type	Contact Finish - Post	Insulation Color	Mounting Type	Number of Positions	Contact Finish Thickness - Mating	Connector Type	Contact Material	Features	Voltage Rating	Contact Finish - Mating	Contact Finish Thickness - Post	Fastening Type	Contact Length - Post	Insulation Height [z]	Insulation Height [z]
Adam Tech BHR-20-HUA-ML	-40 °C	105 ░C	Square	All	Shrouded - 4 Wall	Board to Board Cable	Solder	3 A	2.54 mm	0.1 in	0.1 in	2.54 mm	9 mm	0.354 in	UL94 V-0	2	Polybutylene Terephthalate (PBT) Glass Filled	3.2 mm	0.126 in	Male Pin	Gold	Black	Through Hole Right Angle	20	Flash	Header	Brass	Keying Slot	350 VAC	Gold	Flash	Latch Lock/Eject Hooks Long
Adam Tech BHR-20-VUA	-50 °C	105 ░C	Square	All	Shrouded - 4 Wall	Board to Board Cable	Solder	3 A	2.54 mm	0.1 in	0.1 in	2.54 mm	9.1 mm	0.358 in	UL94 V-0	2	Polybutylene Terephthalate (PBT)	3.3 mm		Male Pin	Gold		Through Hole	20	Flash	Header	Brass	Polarizing Key	250 VAC	Gold	Flash	Push-Pull	0.13 in
Adam Tech BHR-20-VSG-SMT	-40 °C	105 ░C	Square	All	Shrouded - 4 Wall	Board to Board Cable	Solder	3 A	2.54 mm	0.1 in	0.1 in	2.54 mm			UL94 V-0	2	Thermoplastic			Male Pin	Tin	Black	Surface Mount	20	Flash	Header	Brass	Keying Slot	250 VAC	Gold		Push-Pull		10.49 mm	0.413 in
