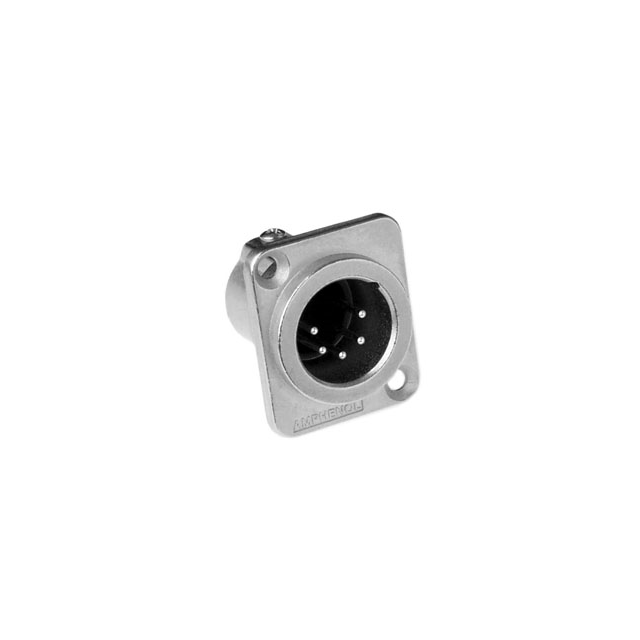

AC5MDZ BULK

Active

Amphenol Sine Systems Corp

METAL PANEL MOUNT 5 PIN BULK

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

METAL PANEL MOUNT 5 PIN BULK

Technical Specifications

Parameters and characteristics for this part

Specification	AC5MDZ BULK

Applications	Audio
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection	IP40
Insert Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	XLR
Shielding	Shielded

Part	Material Flammability Rating	Shell Material	Contact Finish - Mating	Shell Finish	Fastening Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Current Rating (Amps)	Shielding	Mounting Feature	Ingress Protection	Connector Type	Color	Orientation	Insert Material	Contact Material	Shell Size - Insert	Applications
Amphenol Sine Systems Corp AC5MDZ BULK	UL94 V-0	Zinc Die Cast	Silver	Nickel	Push-Pull	Ground	-25 °C	75 ░C	Metal	7.5 A	Shielded	Flange	IP40	Male Pins Receptacle	Silver	Keyed	Glass Filled Nylon 6/6 Polyamide (PA66)	Brass	XLR	Audio
Amphenol Sine Systems Corp AC5MDZB BULK	UL94 V-0	Zinc Die Cast	Silver	Black	Push-Pull		-25 °C	75 ░C	Metal	7.5 A	Unshielded	Flange	IP40	Male Pins Receptacle	Black	Keyed	Glass Filled Nylon 6/6 Polyamide (PA66)	Brass	XLR	Audio

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	300	$ 6.03

General part information

5 Position Circular Connector Receptacle, Male Pins Solder Cup
