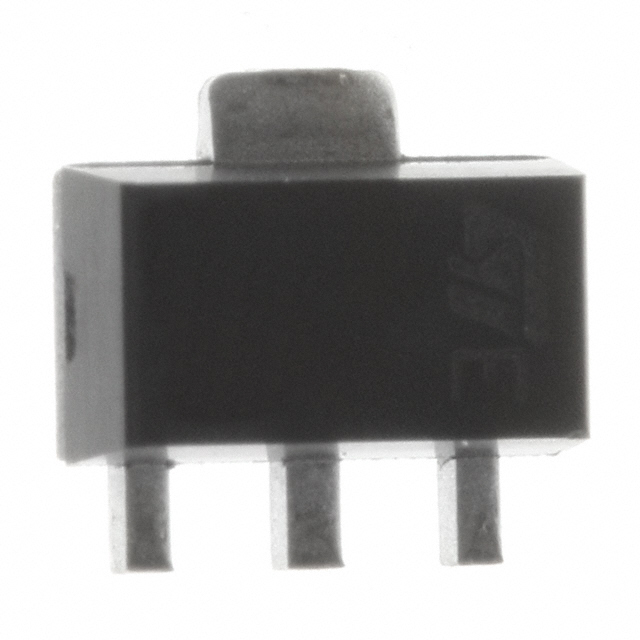

2STF2220

Obsolete

STMicroelectronics

TRANS PNP 20V 1.5A SOT89-3

Search across all available documentation for this part.

Obsolete

STMicroelectronics

TRANS PNP 20V 1.5A SOT89-3

Technical Specifications

Parameters and characteristics for this part

Specification	2STF2220

Current - Collector (Ic) (Max) [Max]	1.5 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	200
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	TO-243AA
Power - Max [Max]	1.4 W
Supplier Device Package	SOT-89-3
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic [Max]	450 mV
Voltage - Collector Emitter Breakdown (Max)	20 V

Part	Vce Saturation (Max) @ Ib, Ic [Max]	Transistor Type	Supplier Device Package	Operating Temperature	Package / Case	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Voltage - Collector Emitter Breakdown (Max)	Mounting Type	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]
STMicroelectronics 2STF2220	450 mV	PNP	SOT-89-3	150 °C	TO-243AA	200	20 V	Surface Mount	1.4 W	100 nA	1.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor PNP 20 V 1.5 A 1.4 W Surface Mount SOT-89-3
