ANT-5GW-FPC-V100UF

Active

TE Connectivity Linx

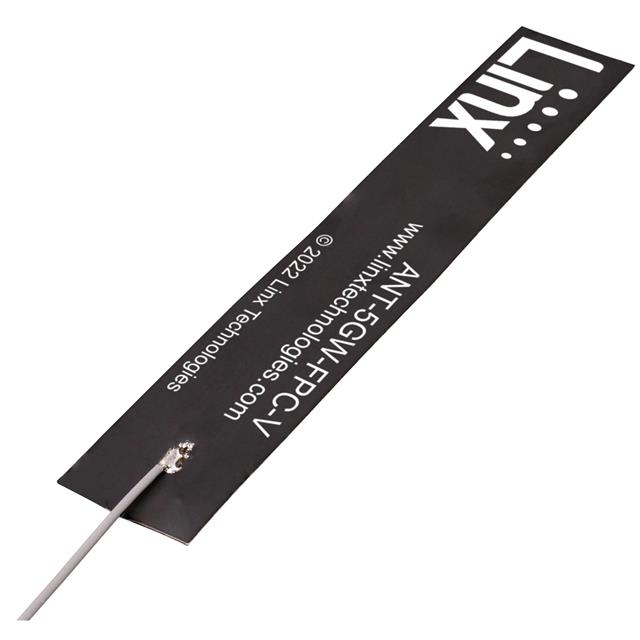

ANT 5G FPC 120X20 100MM UFL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANT-5GW-FPC-V100UF

Active

TE Connectivity Linx

ANT 5G FPC 120X20 100MM UFL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ANT-5GW-FPC-V100UF

Antenna Type	Flat Patch
Applications	5G, 4G, LTE, 3G, 2G
Features	Cable
Features	100 mm
Frequency (Center/Band)	4.7 GHz, 2.495 GHz, 657.5 MHz, 1.593 GHz, 842.5 MHz, 1.175 GHz, 3.75 GHz, 1.947 GHz, 750.5 MHz
Frequency Group	Wide Band
Frequency Range [Max]	1.518 GHz, 1.661 GHz, 698 MHz, 894 MHz, 2.69 GHz, 4.2 GHz, 2.2 GHz, 803 MHz, 5 GHz
Frequency Range [Min]	4.4 GHz, 1.695 GHz, 3.3 GHz, 617 MHz, 791 MHz, 832 MHz, 698 MHz, 2.3 GHz, 1.525 GHz
Gain	6.3 dBi, 4.9 dBi, 4.1 dBi, 6.2 dBi, 7.9 dBi, 4.6 dBi, 6.6 dBi
Height (Max)	0.1 mm
Height (Max) [Max]	0.004 in
Mounting Type	Adhesive
Number of Bands	9
Power - Max [Max]	2 W
RF Family/Standard	Cellular
Termination	U.FL, MHF1
VSWR	1.8, 2.6, 1.6, 2.4

ANT-5GW Series

Part	RF Family/Standard	Frequency Range [Min]	Frequency Range [Max]	Frequency Group	Applications	Frequency (Center/Band)	VSWR	Height (Max)	Height (Max) [Max]	Termination	Power - Max [Max]	Features	Features	Antenna Type	Gain	Mounting Type	Number of Bands
TE Connectivity Linx ANT-5GW-FPC-V100UF	Cellular	1.525 GHz 1.695 GHz 2.3 GHz 3.3 GHz 4.4 GHz 617 MHz 698 MHz 791 MHz 832 MHz	1.518 GHz 1.661 GHz 2.2 GHz 2.69 GHz 4.2 GHz 5 GHz 698 MHz 803 MHz 894 MHz	Wide Band	2G 3G 4G 5G LTE	1.175 GHz 1.593 GHz 1.947 GHz 2.495 GHz 3.75 GHz 4.7 GHz 657.5 MHz 750.5 MHz 842.5 MHz	1.6 1.8 2.4 2.6	0.1 mm	0.004 in	MHF1 U.FL	2 W	Cable	100 mm	Flat Patch	4.1 dBi 4.6 dBi 4.9 dBi 6.2 dBi 6.3 dBi 6.6 dBi 7.9 dBi	Adhesive	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 4.03
		500	$ 3.74
		1000	$ 3.66

Description

General part information

ANT-5GW Series

657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.947GHz, 2.495GHz, 3.75GHz, 4.7GHz 2G, 3G, 4G, 5G, LTE Flat Patch RF Antenna 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz 4.6dBi, 6.6dBi, 7.9dBi, 7.9dBi, 6.2dBi, 4.9dBi, 4.1dBi, 6.3dBi, 7.9dBi MHF1, U.FL Adhesive
