Amphenol CONEC

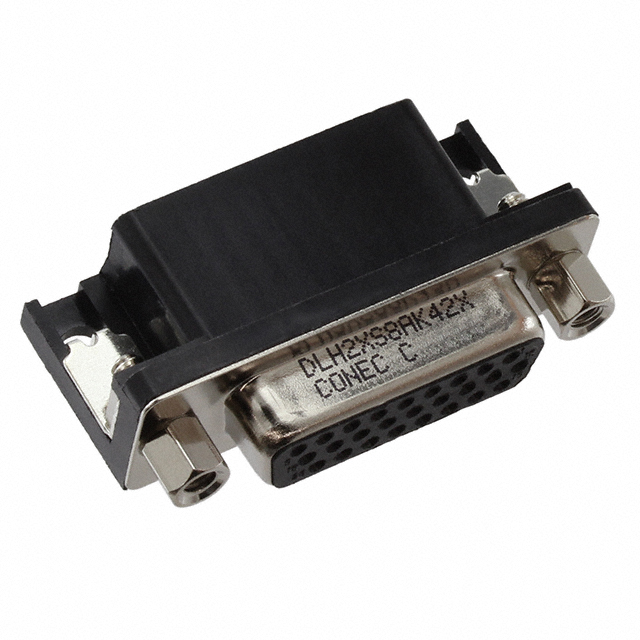

CONN D-SUB HD RCPT 26P R/A SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB HD RCPT 26P R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	DLH2XS8AK42X

Backset Spacing	0.346 in
Backset Spacing	8.78 mm
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Form	Stamped
Contact Type	Signal
Dielectric Material	Polyester, Glass Filled
Flange Feature	Female Screwlock (4-40), Mating Side
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder

Part	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Type	Connector Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Form	Connector Style	Flange Feature	Number of Rows	Mounting Type	Backset Spacing	Backset Spacing	Termination	Dielectric Material
Amphenol CONEC DLH2XS8AK42X	2	(DA A) High Density	Signal	Receptacle Female Sockets	Gold	-55 °C	125 °C	26	Stamped	D-Sub High Density	Female Screwlock (4-40) Mating Side	3	Through Hole Right Angle	0.346 in	8.78 mm	Solder	Polyester Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	70	$ 4.45

General part information

26 Position D-Sub, High Density Receptacle, Female Sockets Connector
