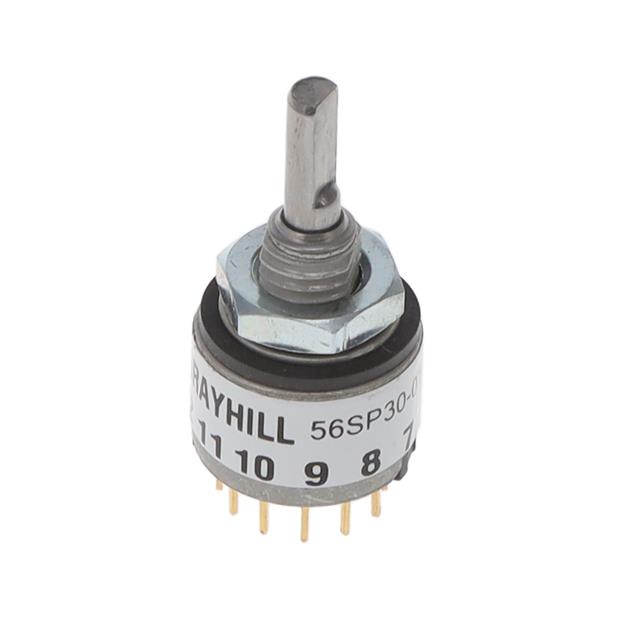

56SP30-01-1-04N

Active

Grayhill Inc.

ROTARY SWITCH,STRAIGHT,NUMBER OF POSITIONS:4,PC TAIL TERMINAL,ROTARY SHAFT,PCB HOLE COUNT:12

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

56SP30-01-1-04N

Active

Grayhill Inc.

ROTARY SWITCH,STRAIGHT,NUMBER OF POSITIONS:4,PC TAIL TERMINAL,ROTARY SHAFT,PCB HOLE COUNT:12

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	56SP30-01-1-04N

Actuator Length [x]	9.53 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Angle of Throw	30 °
Circuit per Deck	SP4T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	200 mA
Depth Behind Panel [z]	9.58 mm
Features	Shaft and Panel Sealed
Index Stops	Fixed
Mounting Type	Through Hole, Panel Mount
Number of Decks [custom]	1
Number of Poles per Deck	1
Number of Positions	4
Termination Style	PC Pin
Voltage Rating - AC	115 V
Voltage Rating - DC	30 V

56SP30 Series

Part	Voltage Rating - DC	Actuator Length [x]	Circuit per Deck	Current Rating (Amps)	Mounting Type	Features	Number of Poles per Deck	Termination Style	Number of Positions	Contact Material	Contact Timing	Contact Finish	Voltage Rating - AC	Number of Decks [custom]	Index Stops	Angle of Throw	Depth Behind Panel [z]	Actuator Type [diameter]	Actuator Type	Circuit per Deck [custom]
Grayhill Inc. 56SP30-01-1-04N	30 V	9.53 mm	SP4T	200 mA	Panel Mount Through Hole	Shaft and Panel Sealed	1	PC Pin	4	Brass	Non-Shorting	Silver	115 V	1	Fixed	30 °	9.58 mm	3.17 mm	Flatted
Grayhill Inc. 56SP30S-01C04S	30 V	9.53 mm	DP4T	200 mA	Panel Mount Through Hole	Shaft and Panel Sealed	2	PC Pin	4	Brass	Shorting	Silver	115 V	1	Fixed	30 °	9.58 mm	3.17 mm	Flatted
Grayhill Inc. 56SP30-01-4-03S	30 V	9.53 mm		200 mA	Panel Mount Through Hole	Shaft and Panel Sealed		PC Pin		Brass	Shorting	Silver	115 V	1	Fixed	30 °	9.58 mm	3.17 mm	Flatted	4P3T
Grayhill Inc. 56SP30-01-4-02S	30 V	9.53 mm		200 mA	Panel Mount Through Hole	Shaft and Panel Sealed		PC Pin	2	Brass	Shorting	Silver	115 V	1	Fixed	30 °	9.58 mm	3.17 mm	Flatted	4PDT
Grayhill Inc. 56SP30-01-2-03N	30 V	9.53 mm	DP3T	200 mA	Panel Mount Through Hole	Shaft and Panel Sealed	2	PC Pin		Brass	Non-Shorting	Silver	115 V	1	Fixed	30 °	9.58 mm	3.17 mm	Flatted
Grayhill Inc. 56SP30-01-2-04N	30 V	9.53 mm	DP4T	200 mA	Panel Mount Through Hole	Shaft and Panel Sealed	2	PC Pin	4	Brass	Non-Shorting	Silver	115 V	1	Fixed	30 °	9.58 mm	3.17 mm	Flatted
Grayhill Inc. 56SP30-01-1-02N	30 V	9.53 mm	SPDT	200 mA	Panel Mount Through Hole	Shaft and Panel Sealed	1	PC Pin	2	Brass	Non-Shorting	Silver	115 V	1	Fixed	30 °	9.58 mm	3.17 mm	Flatted
Grayhill Inc. 56SP30-01A12S	30 V	9.53 mm	SP12T	200 mA	Panel Mount Through Hole	Shaft and Panel Sealed	1	PC Pin	12	Brass	Shorting	Silver	115 V	1	Continuous	30 °	9.58 mm	3.17 mm	Flatted
Grayhill Inc. 56SP30-01-4-02N	30 V	9.53 mm		200 mA	Panel Mount Through Hole	Shaft and Panel Sealed		PC Pin	2	Brass	Non-Shorting	Silver	115 V	1	Fixed	30 °	9.58 mm	3.17 mm	Flatted	4PDT
Grayhill Inc. 56SP30-01-1-03N	30 V	9.53 mm	SP3T	200 mA	Panel Mount Through Hole	Shaft and Panel Sealed	1	PC Pin		Brass	Non-Shorting	Silver	115 V	1	Fixed	30 °	9.58 mm	3.17 mm	Flatted

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.89
		5	$ 23.09
		10	$ 21.65
		25	$ 19.84
		50	$ 18.57
		100	$ 17.43
		250	$ 15.98
		500	$ 15.68
Newark	Each	1	$ 26.99
		100	$ 22.69
		250	$ 20.98

Description

General part information

56SP30 Series

Rotary Switch 4 Position SP4T 200mA (AC/DC) 115 VAC Panel Mount, Through Hole
