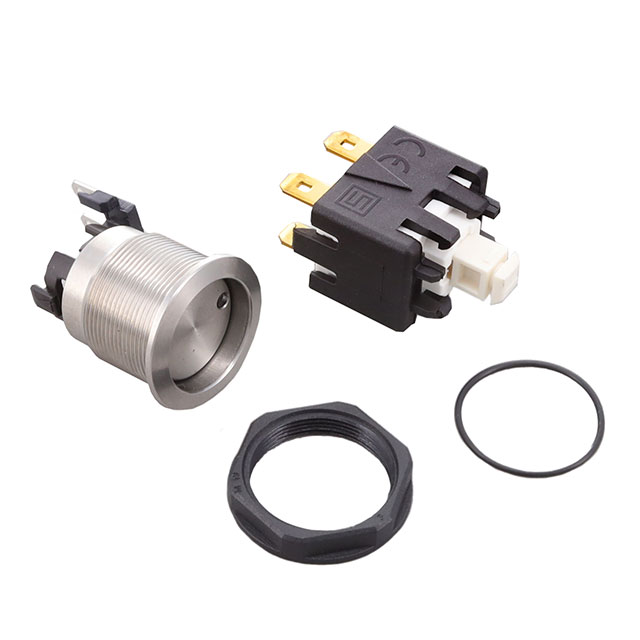

1241.6823.1121000

Active

SCHURTER Inc.

SWITCH PUSHBUTTON DPST 12A 250V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSHBUTTON DPST 12A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	1241.6823.1121000

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPST
Color - Actuator/Cap	Silver
Current Rating (Amps)	12 A
Electrical Life	50000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.9 VDC
Ingress Protection	IP64 - Dust Tight, Water Resistant
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	19.1 mm
Switch Function	Off-On
Termination Style	Quick Connect - 0.187" (4.7mm)
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	250 V
Voltage Rating - DC	30 V

Part	Type	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Termination Style	Mounting Type	Electrical Life	Actuator Type	Circuit	Illumination Voltage (Nominal)	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Illumination Type, Color	Color - Actuator/Cap	Ingress Protection	Actuator Marking	Voltage Rating - AC	Current Rating (Amps)
SCHURTER Inc. 1241.6823.1121000	Anti-Vandal Illuminated	19.1 mm	30 V	Quick Connect - 0.187" (4.7mm)	Panel Mount Front	50000 Cycles	Button Round	DPST	1.9 VDC	100000 Cycles	85 °C	-20 C	Off-On	LED Red	Silver	IP64 - Dust Tight Water Resistant	No Marking	250 V	12 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST Anti-Vandal, Illuminated Panel Mount, Front
