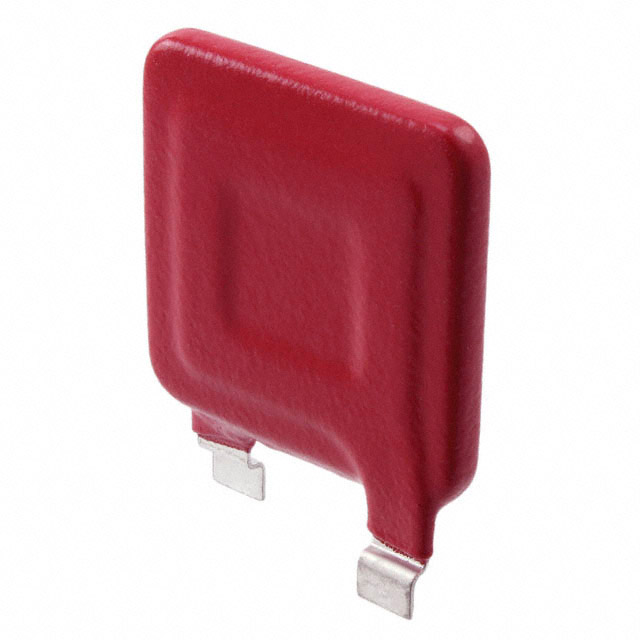

V301HB34 - HB34

V301HB34

Active
Littelfuse/Commercial Vehicle Products

HB VARISTOR 34MM ROHS / LEAD FREE/ BULK

Deep-Dive with AI

Search across all available documentation for this part.

V301HB34 - HB34

V301HB34

Active
Littelfuse/Commercial Vehicle Products

HB VARISTOR 34MM ROHS / LEAD FREE/ BULK

Technical Specifications

Parameters and characteristics for this part

SpecificationV301HB34
Capacitance @ Frequency4100 pF
Current - Surge40 kA
Energy430 J
Maximum AC Volts300 V
Maximum DC Volts [Max]410 V
Mounting TypeThrough Hole
Number of Circuits1
Operating Temperature [Max]85 C
Operating Temperature [Min]-55 C
Package / CaseFormed Tabs, Square 34mm
Varistor Voltage (Max) [Max]517 V
Varistor Voltage (Min) [Min]423 V
Varistor Voltage (Typ)470 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 10.49
10$ 9.47
30$ 9.03
120$ 7.84
270$ 7.49
510$ 6.83
1020$ 6.05
NewarkEach 100$ 7.17
250$ 6.83
500$ 6.35

Description

General part information

V301HB34 Series

The HB34 Series of transient surge suppressors are industrial high-energy Metal-Oxide Varistors (MOVs). They are designed to proide surge suppression in the AC mains outdoor and service entrance environment (distribution panels) of buildings. HB34 applications also include industrial heavy motors, controls, and power supplies such as used in the oil-drilling, mining, and transportation fields, including HVAC and motor/generator applications. The HB34 Series provides rigid terminals for through-hole solder mounting on printed circuit boards, thereby eliminating the need for screw mounting.
