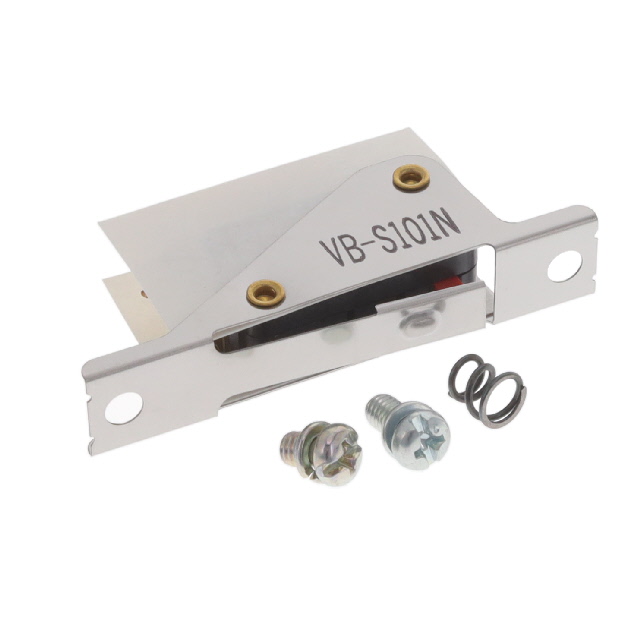

VB-S101N
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VB-S101N
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 10A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VB-S101N |
|---|---|
| Circuit | SPDT |
| Differential Travel | 0.5 mm |
| Differential Travel | 0.02 in |
| Electrical Life | 300000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 5000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 1500 gf |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -10 °C |
| Overtravel | 3.5 mm |
| Overtravel | 0.138 in |
| Pretravel | 1.5 mm |
| Pretravel | 0.06 in |
| Release Force | 500 gf |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 54.21 | |
| 10 | $ 44.93 | |||
| 25 | $ 41.69 | |||
| 50 | $ 39.39 | |||
| 100 | $ 37.22 | |||
| 250 | $ 34.53 | |||
Description
General part information
VB-S101 Series
Switch SPDT Chassis Mount
