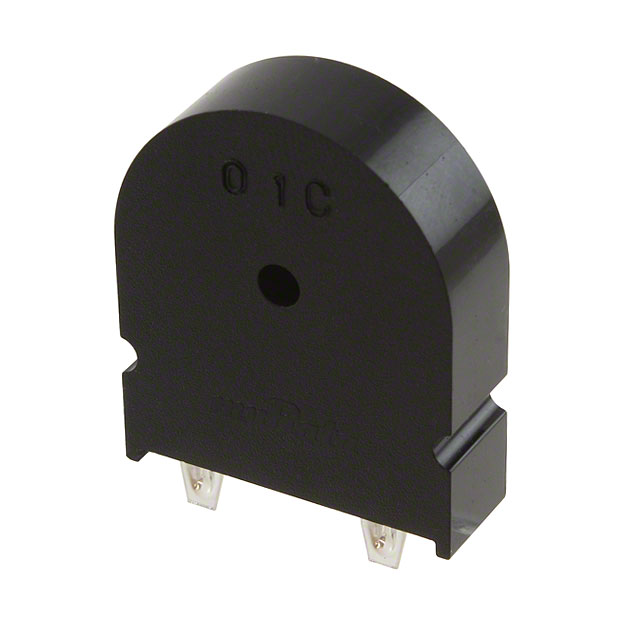

PKM22EPTH2001-B0

Obsolete

Murata Power Solutions Inc.

BUZZER PIEZO 3V 22X7MM W TH

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

BUZZER PIEZO 3V 22X7MM W TH

Technical Specifications

Parameters and characteristics for this part

Specification	PKM22EPTH2001-B0

Driver Circuitry	Externally Driven, Transducer
Frequency	2 kHz
Height - Seated (Max) [Max] [z]	1.063 in
Height - Seated (Max) [Max] [z]	27 mm
Input Type	Peak-Peak Signal
Mounting Type	Through Hole
Operating Mode	Single Tone
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Port Location	Side
Size / Dimension [x]	22 mm
Size / Dimension [x]	0.866 in
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.276 in
Sound Pressure Level (SPL)	70 dB
Technology	Piezo
Termination	PC Pins
Voltage - Rated	3 VDC

Part	Mounting Type	Input Type	Sound Pressure Level (SPL)	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Frequency	Driver Circuitry	Voltage Range [Max]	Port Location	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Mode	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Technology	Voltage - Rated
Murata Power Solutions Inc. PKM22EPTH2002-B0	Through Hole	Zero-Peak Signal	70 dB	-20 C	70 °C	PC Pins	2 kHz	Externally Driven Transducer	25 VDC	Side	7 mm	0.276 in	22 mm	0.866 in	Ringer	1.063 in	27 mm	Piezo
Murata Power Solutions Inc. PKM22EPTH2001-B0	Through Hole	Peak-Peak Signal	70 dB	-20 C	70 °C	PC Pins	2 kHz	Externally Driven Transducer		Side	7 mm	0.276 in	22 mm	0.866 in	Single Tone	1.063 in	27 mm	Piezo	3 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buzzers Transducer, Externally Driven Piezo 3 V 2kHz 70dB @ 3V, 10cm Through Hole PC Pins

Technical documentation and resources

No documents available
