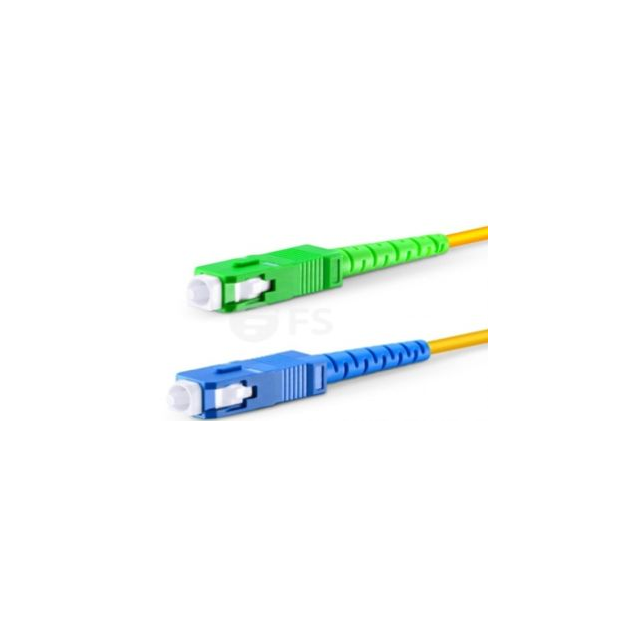

PAT-20-DC-B-30-S-9

Active

FiberSource, Inc

SCA-SCU SM 3MM YELLOW SIMPLX 20M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PAT-20-DC-B-30-S-9

Active

FiberSource, Inc

SCA-SCU SM 3MM YELLOW SIMPLX 20M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PAT-20-DC-B-30-S-9

1st Connector	SC/APC
2nd Connector	SC/UPC
Cable Diameter [diameter]	3 mm
Cable Diameter [diameter]	0.12 in
Color - Cable	Yellow
Insertion Loss	0.2 dB
Length - Overall [x]	65.6 ft
Length - Overall [x]	20 m
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Return Loss	65 dB, 55 dB
Type	Singlemode, Simplex

PAT-20 Series

Part	Cable Diameter [diameter]	Cable Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	2nd Connector	Color - Cable	Return Loss	1st Connector	Insertion Loss	Operating Temperature [Max]	Operating Temperature [Min]	Type	Color - Connectors	Features	Fiber Type	Jacket (Insulation) Material	Ratings	Cable Type
FiberSource, Inc PAT-20-CC-B-20-D-9	2 mm	0.08 in	65.6 ft	20 m	SC Duplex	Yellow	55 dB	SC Duplex	0.3 dB	85 °C	-40 °C	Duplex Singlemode	Blue
FiberSource, Inc PAT-20-HC-B-20-D-9	2 mm	0.08 in	65.6 ft	20 m	SC Duplex	Yellow	55 dB	LC Duplex	0.3 dB	85 °C	-40 °C	Duplex Singlemode	Blue
FiberSource, Inc PAT-20-JH-B-20-S-9	2 mm	0.08 in	65.6 ft	20 m	LC/UPC	Yellow	55 dB 65 dB	LC/APC	0.2 dB	85 °C	-40 °C	Simplex Singlemode
FiberSource, Inc PAT-20-DD-B-20-D-9	2 mm	0.08 in	65.6 ft	20 m	SC Duplex	Yellow	65 dB	SC Duplex	0.3 dB	85 °C	-40 °C	Duplex Singlemode	Blue
FiberSource, Inc PAT-20-DC-B-20-D-9	2 mm	0.08 in	65.6 ft	20 m	SC/UPC	Yellow	65 dB	SC/APC	0.3 dB	85 °C	-40 °C	Duplex Singlemode	Blue
FiberSource, Inc PAT-20-HH-B-20-D-9	2 mm	0.08 in	65.6 ft	20 m	LC Duplex	Yellow	55 dB	LC Duplex	0.3 dB	85 °C	-40 °C	Duplex Singlemode	Blue
FiberSource, Inc PAT-20-DC-B-30-S-9	3 mm	0.12 in	65.6 ft	20 m	SC/UPC	Yellow	55 dB 65 dB	SC/APC	0.2 dB	85 °C	-40 °C	Simplex Singlemode
FiberSource, Inc PAT-20-JH-B-20-D-9	2 mm	0.08 in	65.6 ft	20 m	LC Duplex	Yellow	65 dB	LC Duplex	0.3 dB	85 °C	-40 °C	Duplex Singlemode	Blue
FiberSource, Inc PAT-20-HD-B-20-S-9	2 mm	0.08 in	65.6 ft	20 m	SC/APC	Yellow	55 dB 65 dB	LC/UPC	0.2 dB	85 °C	-40 °C	Simplex Singlemode
FiberSource, Inc PAT-20-JD-B-20-D-9	2 mm	0.08 in	65.6 ft	20 m	SC Duplex	Yellow	65 dB	LC Duplex	0.3 dB	85 °C	-40 °C	Duplex Singlemode	Blue Green	Low Smoke	9/125	Flame Retardant Non-Corrosive (FRNC)	LSZH	Bend Insensitive Fiber (BIF)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 21.87
		30	$ 21.35
		50	$ 20.61
		80	$ 20.02
		100	$ 19.43
		250	$ 18.87
		500	$ 18.31
		1000	$ 17.78

Description

General part information

PAT-20 Series

Cable Fiber Optic SC/APC To SC/UPC 65.6' (20.0m)
