15-000513

Active

Amphenol CONEC

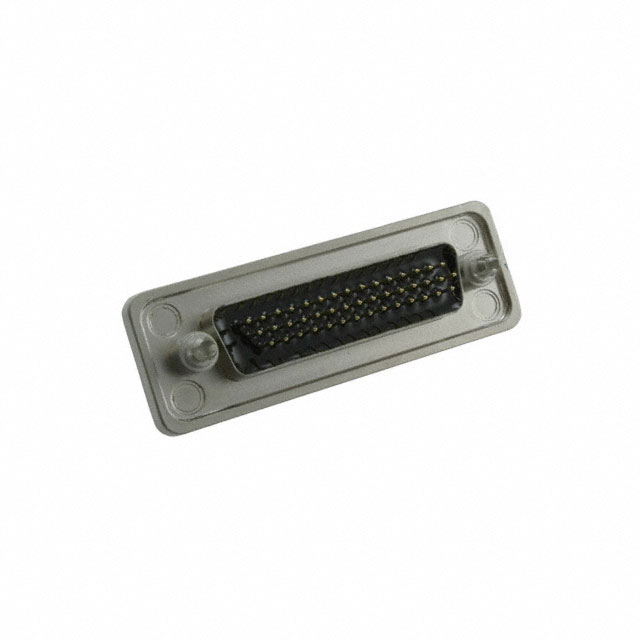

CONN D-SUB HD PLUG 44POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

15-000513

Active

Amphenol CONEC

CONN D-SUB HD PLUG 44POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	15-000513

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	44
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Zinc Die Cast
Shell Size, Connector Layout [custom]	B, DB
Shell Size, Connector Layout [x]	3
Termination	Solder
Voltage Rating	60 VDC

15-0005 Series

Part	Number of Positions	Current Rating (Amps)	Shell Material, Finish	Wire Gauge	Ingress Protection	Shell Size, Connector Layout	Connector Type	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Style	Voltage Rating	Dielectric Material	Contact Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Flange Feature	Number of Rows	Termination	Mounting Type	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol CONEC 15-000583	15	7.5 A	Nickel Plated Zinc Die Cast	20 AWG	IP67 - Dust Tight Waterproof	2	Male Pins Plug	Black	8 çin	0.203 çm	Gold	D-Sub	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Copper Alloy	-25 °C	105 ░C	UL94 V-0	Female Screwlock (4-40) Mating Side	2
Amphenol CONEC 15-000543	26	3 A	Nickel Plated Zinc Die Cast		IP67 - Dust Tight Waterproof	2	Receptacle Female Sockets	Black	8 çin	0.203 çm	Gold	D-Sub High Density	60 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Copper Alloy	-25 °C	105 ░C	UL94 V-0	Female Screwlock (4-40) Mating Side	3	Solder	Panel Mount Through Hole	(DA A) High Density
Amphenol CONEC 15-000593		7.5 A	Nickel Plated Zinc Die Cast	20 AWG	IP67 - Dust Tight Waterproof		Male Pins Plug	Black	8 çin	0.203 çm	Gold	D-Sub	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Copper Alloy	-25 °C	105 ░C	UL94 V-0	Female Screwlock (4-40) Mating Side	2				B DB	3
Amphenol CONEC 15-000553	44	3 A	Nickel Plated Zinc Die Cast		IP67 - Dust Tight Waterproof		Receptacle Female Sockets	Black	8 çin	0.203 çm	Gold	D-Sub High Density	60 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Copper Alloy	-25 °C	105 ░C	UL94 V-0	Female Screwlock (4-40) Mating Side	3	Solder	Panel Mount Through Hole				3	B DB
Amphenol CONEC 15-000503	26	3 A	Nickel Plated Zinc Die Cast		IP67 - Dust Tight Waterproof	2	Male Pins Plug	Black	8 çin	0.203 çm	Gold	D-Sub High Density	60 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Copper Alloy	-25 °C	105 ░C	UL94 V-0	Female Screwlock (4-40) Mating Side	3	Solder	Panel Mount Through Hole	(DA A) High Density
Amphenol CONEC 15-000573	9	7.5 A	Nickel Plated Zinc Die Cast	20 AWG	IP67 - Dust Tight Waterproof		Male Pins Plug	Black	8 çin	0.203 çm	Gold	D-Sub	125 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Copper Alloy	-40 °C	105 ░C	UL94 V-0	Female Screwlock (4-40) Mating Side	2				DE E	1
Amphenol CONEC 15-000513	44	3 A	Nickel Plated Zinc Die Cast		IP67 - Dust Tight Waterproof		Male Pins Plug	Black	8 çin	0.203 çm	Gold	D-Sub High Density	60 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Copper Alloy	-25 °C	105 ░C	UL94 V-0	Female Screwlock (4-40) Mating Side	3	Solder	Panel Mount Through Hole				3	B DB
Amphenol CONEC 15-000533	15	3 A	Nickel Plated Zinc Die Cast		IP67 - Dust Tight Waterproof		Receptacle Female Sockets	Black	8 çin	0.203 çm	Gold	D-Sub High Density	60 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Copper Alloy	-25 °C	105 ░C	UL94 V-0	Female Screwlock (4-40) Mating Side	3	Solder	Panel Mount Through Hole					DE E	1	High Density

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.25
		20	$ 29.99
		40	$ 27.77
		100	$ 26.84
		260	$ 25.36

Description

General part information

15-0005 Series

44 Position D-Sub, High Density Plug, Male Pins Connector
