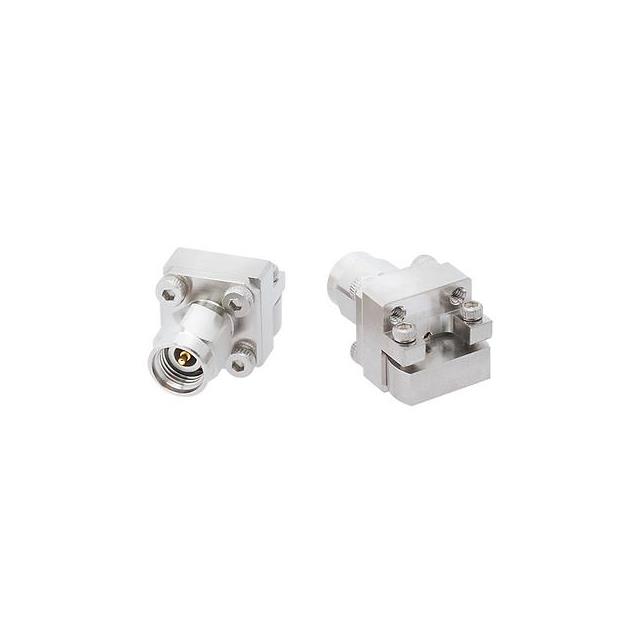

EL03MS002
ActiveWITHWAVE CO LTD
END LAUNCH 2.92 MM CONNECTOR(DC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EL03MS002
ActiveWITHWAVE CO LTD
END LAUNCH 2.92 MM CONNECTOR(DC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EL03MS002 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | 2.92 mm |
| Connector Type | Male Pin, Plug |
| Contact Termination | Compression |
| Frequency - Max [Max] | 40 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Board Edge, End Launch |
| Number of Ports | 1 |
| Shield Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 75.80 | |
| 10 | $ 72.00 | |||
| 25 | $ 68.30 | |||
| 50 | $ 64.50 | |||
Description
General part information
EL03M Series
2.92mm Connector Plug, Male Pin 50 Ohms Board Edge, End Launch Compression
Documents
Technical documentation and resources
