MC100EL05DT

Obsolete

ON Semiconductor

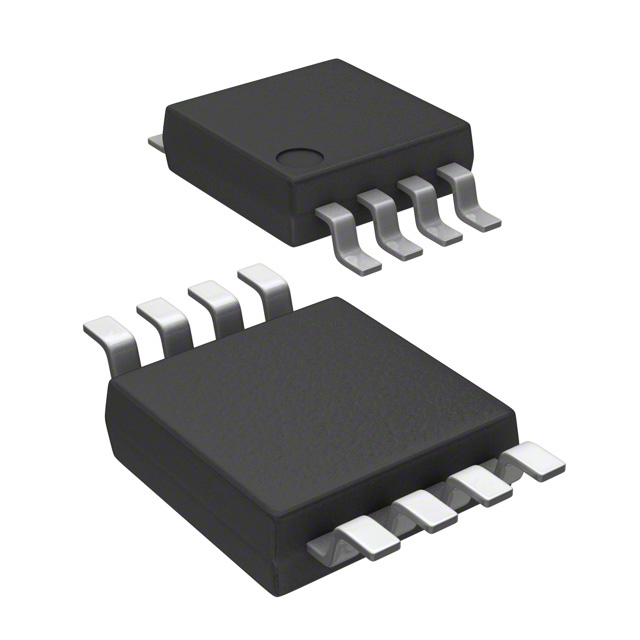

IC GATE AND/NAND ECL 2INP 8TSSOP

Search across all available documentation for this part.

Obsolete

ON Semiconductor

IC GATE AND/NAND ECL 2INP 8TSSOP

Technical Specifications

Parameters and characteristics for this part

Part	Number of Circuits	Number of Inputs	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Supplier Device Package	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Package / Case [y]	Package / Case [x]	Logic Type	Package / Case [custom]	Package / Case
ON Semiconductor MC100EL05D	1	2	85 °C	-40 °C	Differential	8-SOIC	Surface Mount	5.7 V	4.2 V	8-SOIC	3.9 mm	0.154 in	2 Input AND/NAND Gate
ON Semiconductor MC100EL05DG	1	4	85 °C	-40 °C	Differential	8-SOIC	Surface Mount	5.7 V	4.2 V	8-SOIC	3.9 mm	0.154 in	AND/NAND Gate
ON Semiconductor MC100EL05DT	1	4	85 °C	-40 °C	Differential	8-TSSOP	Surface Mount	5.7 V	4.2 V	8-MSOP 8-TSSOP			AND/NAND Gate	0.118 in	3 mm
ON Semiconductor MC100EL05DR2G	1	4	85 °C	-40 °C	Differential	8-SOIC	Surface Mount	5.7 V	4.2 V	8-SOIC	3.9 mm	0.154 in	AND/NAND Gate
ON Semiconductor MC100EL05DR2	1	2	85 °C	-40 °C	Differential	8-SOIC	Surface Mount	5.7 V	4.2 V	8-SOIC	3.9 mm	0.154 in	2 Input AND/NAND Gate

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

AND/NAND Gate Configurable 1 Circuit 4 Input (2, 2) Input 8-TSSOP
