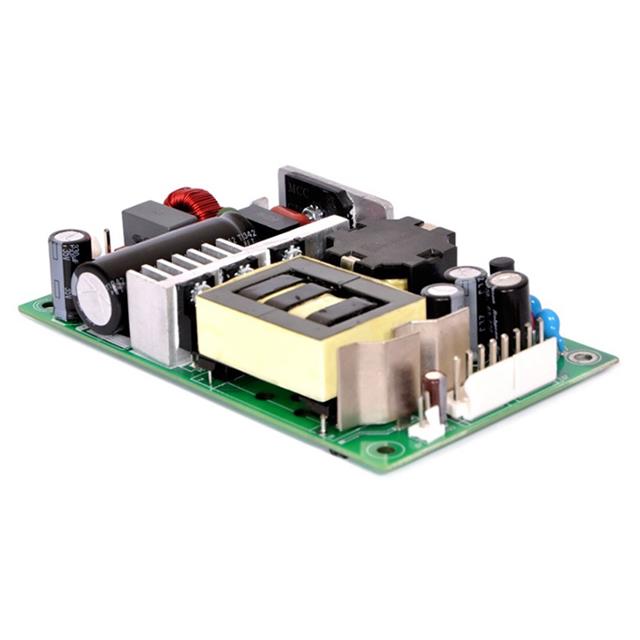

LFWLP350-1001

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 180W

Deep-Dive with AI

Search across all available documentation for this part.

LFWLP350-1001

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 180W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LFWLP350-1001

Applications	ITE (Commercial)
Approval Agency	UL, NEMKO, cUL, CE, CB, CCC
Current - Output 1	15 A
Efficiency	92 %
Features	Universal Input, Adjustable Output, PFC, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	300 W, 180 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1 "
Size / Dimension [z]	25.4 mm
Standard Number	62368-1
Type	Open Frame
Voltage - Input	390 VDC
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

WLP350 Series

Part	Mounting Type	Standard Number	Voltage - Output 1	Current - Output 1	Type	Approval Agency	Applications	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Input	Power (Watts)	Power (Watts)	Number of Outputs	Voltage - Isolation	Features	Efficiency
EOS Power India Private Ltd WLP350-1002-II	Chassis Mount	62368-1	15 V	12 A	Open Frame	CB CCC CE cUL NEMKO UL	ITE (Commercial)	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	90 VAC	264 VAC	390 VDC	325 W	180 W	1	3000 V	Adjustable Output PFC Standby Output Universal Input	92 %
EOS Power India Private Ltd LFWLP350-1306	Chassis Mount	62368-1		3.45 A	Open Frame	CB CCC CE cUL NEMKO UL	ITE (Commercial)	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	90 VAC	264 VAC	390 VDC	350 W	200 W	1	3000 V	Adjustable Output PFC Standby Output Universal Input	94 %
EOS Power India Private Ltd LFWLP350-1004	Chassis Mount	62368-1	48 V	4.17 A	Open Frame	CB CCC CE cUL NEMKO UL	ITE (Commercial)	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	90 VAC	264 VAC	390 VDC	350 W	200 W	1	3000 V	Adjustable Output PFC Standby Output Universal Input	94 %
EOS Power India Private Ltd LFWLP350-1003	Chassis Mount	62368-1	24 V	8.33 A	Open Frame	CB CCC CE cUL NEMKO UL	ITE (Commercial)	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	90 VAC	264 VAC	390 VDC	350 W	200 W	1	3000 V	Adjustable Output PFC Standby Output Universal Input	93 %
EOS Power India Private Ltd WLP350-1001-II	Chassis Mount	62368-1	12 V	15 A	Open Frame	CB CCC CE cUL NEMKO UL	ITE (Commercial)	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	90 VAC	264 VAC	390 VDC		180 W 300 W	1	3000 V	Adjustable Output PFC Standby Output Universal Input	92 %
EOS Power India Private Ltd WLP350-1301-II	Chassis Mount	62368-1	12 V	15 A	Open Frame	CB CCC CE cUL NEMKO UL	ITE (Commercial)	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	90 VAC	264 VAC	390 VDC	225 W	180 W	1	3000 V	Adjustable Output PFC Standby Output Universal Input	92 %
EOS Power India Private Ltd LFWLP350-1301	Chassis Mount	62368-1	12 V	15 A	Open Frame	CB CCC CE cUL NEMKO UL	ITE (Commercial)	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	90 VAC	264 VAC	390 VDC	225 W	180 W	1	3000 V	Adjustable Output PFC Standby Output Universal Input	92 %
EOS Power India Private Ltd LFWLP350-1304	Chassis Mount	62368-1	48 V	4.17 A	Open Frame	CB CCC CE cUL NEMKO UL	ITE (Commercial)	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	90 VAC	264 VAC	390 VDC	350 W	200 W	1	3000 V	Adjustable Output PFC Standby Output Universal Input	94 %
EOS Power India Private Ltd WLP350-1302-II	Chassis Mount	62368-1	15 V	12 A	Open Frame	CB CCC CE cUL NEMKO UL	ITE (Commercial)	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	90 VAC	264 VAC	390 VDC		180 W 270 W	1	3000 V	Adjustable Output PFC Standby Output Universal Input	92 %
EOS Power India Private Ltd LFWLP350-1001	Chassis Mount	62368-1	12 V	15 A	Open Frame	CB CCC CE cUL NEMKO UL	ITE (Commercial)	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	90 VAC	264 VAC	390 VDC		180 W 300 W	1	3000 V	Adjustable Output PFC Standby Output Universal Input	92 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 126.95
		5	$ 123.04
		10	$ 119.14
		25	$ 115.23
		54	$ 111.33

Description

General part information

WLP350 Series

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC, 390VDC Input
