SSI-LXH387YD
ActiveLumex Opto/Components Inc.

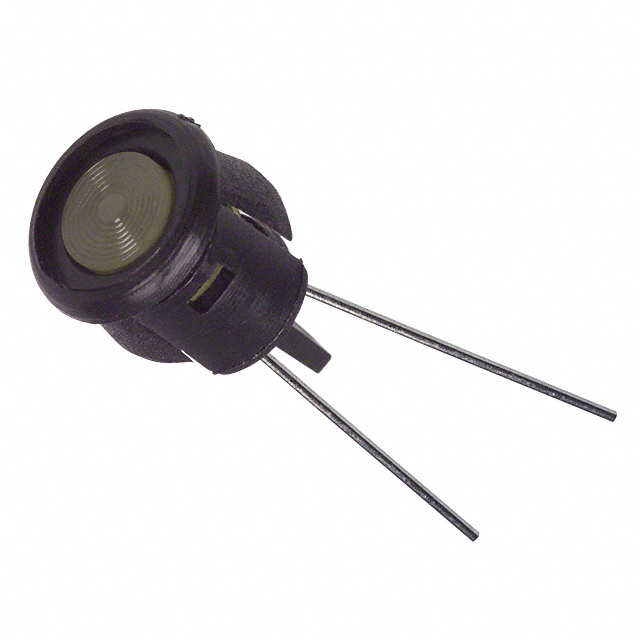

LED 4.9MM FLAT TOP YEL PANEL MNT
Deep-Dive with AI
Search across all available documentation for this part.
SSI-LXH387YD
ActiveLumex Opto/Components Inc.
LED 4.9MM FLAT TOP YEL PANEL MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSI-LXH387YD |
|---|---|
| Current | 30 mA |
| Lamp Color | Yellow |
| Lens Color | Yellow |
| Lens Size [diameter] | 5 mm Dia |
| Lens Transparency | Fresnel |
| Millicandela Rating | 10 mcd |
| Panel Cutout Dimensions [custom] | 0.31 in |
| Panel Cutout Dimensions [custom] | 7.87 mm |
| Panel Cutout Shape | Round |
| Type | LED |
| Viewing Angle | 120 ° |
| Voltage | 2.1 V |
| Wavelength - Peak | 585 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.75 | |
| 10 | $ 1.11 | |||
| 100 | $ 0.82 | |||
| 500 | $ 0.75 | |||
| 1000 | $ 0.62 | |||
| 2000 | $ 0.59 | |||
| 5000 | $ 0.58 | |||
| 10000 | $ 0.56 | |||
Description
General part information
SSI-LXH387 Series
LED Panel Indicator Yellow Fresnel 120° 2.1V 30mA
Documents
Technical documentation and resources
No documents available
