PJ-003B

Obsolete

CUI Devices

CONN POWER JACK 2.5MM ID SOLDER

Search across all available documentation for this part.

Obsolete

CUI Devices

CONN POWER JACK 2.5MM ID SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-003B

Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating	Tin
Current Rating (Amps)	2.5 A
Gender	Male
Housing Material	Polybutylene Terephthalate (PBT)
Industry Recognized Mating Diameter [diameter]	2.5 mm ID
Industry Recognized Mating Diameter [diameter]	0.098 "
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mating Length/Depth	6.5 mm
Mating Length/Depth	0.256 "
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Termination	Solder
Voltage - Rated	24 VDC

Part	Current Rating (Amps)	Internal Switch(s)	Number of Positions/Contacts	Housing Material	Voltage - Rated	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Material - Plating	Contact Material	Gender	Mating Length/Depth	Mating Length/Depth	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Body Color	Termination	Connector Type	Mounting Type
CUI Devices PJ-003B	2.5 A	Normally Closed Single Switch	2 Conductors 3 Conductors	Polybutylene Terephthalate (PBT)	24 VDC	Unshielded	-25 °C	85 °C	UL94 V-0	Tin	Brass Copper Alloy	Male	6.5 mm	0.256 "	2.5 mm ID	0.098 "	Black	Solder	Jack	Through Hole Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

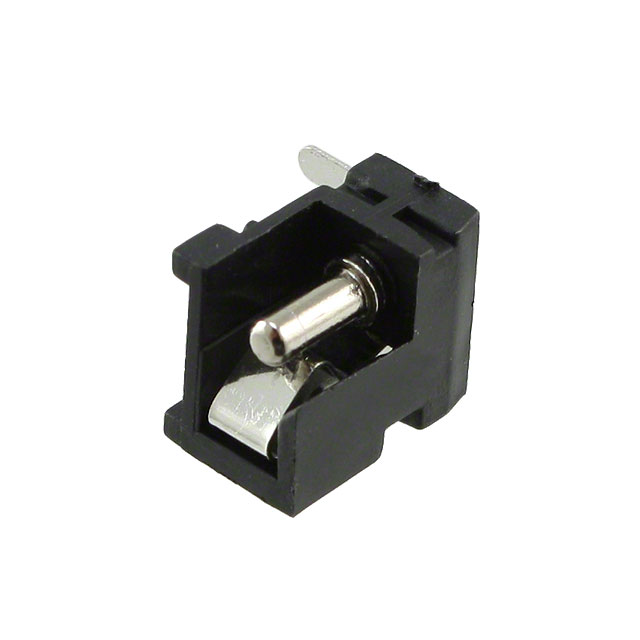

Power Barrel Connector Jack 2.50mm ID (0.098") Through Hole, Right Angle
