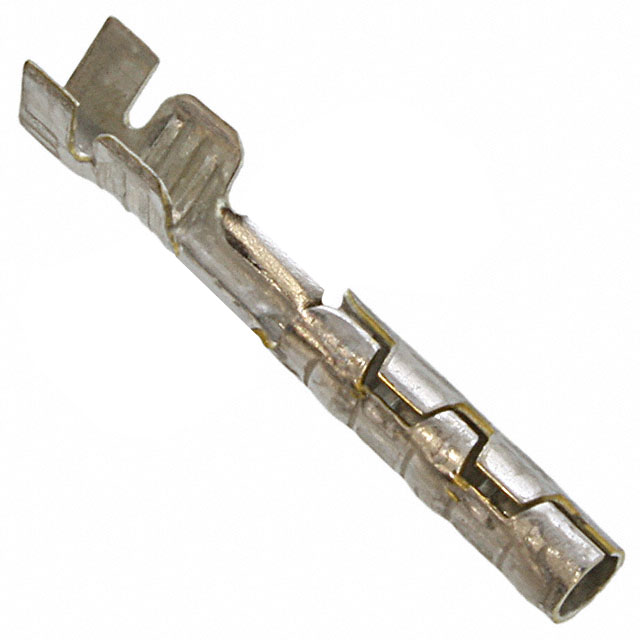

0002081101
ActiveMolex
CONN TERM RCPT 16-24AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
0002081101
ActiveMolex
CONN TERM RCPT 16-24AWG CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0002081101 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Diameter - Barrel [diameter] | 2.29 mm |
| Diameter - Barrel [diameter] | 0.09 " |
| Insulation | Non-Insulated |
| Length - Barrel [x] | 11.96 mm |
| Length - Barrel [x] | 0.471 in |
| Length - Overall | 0.865 in |
| Length - Overall | 21.97 mm |
| Terminal Type | Female, Receptacle (Socket) |
| Termination | Crimp |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.14 | |
| 10 | $ 0.10 | |||
| 100 | $ 0.07 | |||
| 1000 | $ 0.06 | |||
| 2500 | $ 0.05 | |||
| Tape & Reel (TR) | 8000 | $ 0.03 | ||
Description
General part information
000208 Series
Terminal Connector Female, Receptacle (Socket) 16-24 AWG Crimp Tin
Documents
Technical documentation and resources
No documents available
