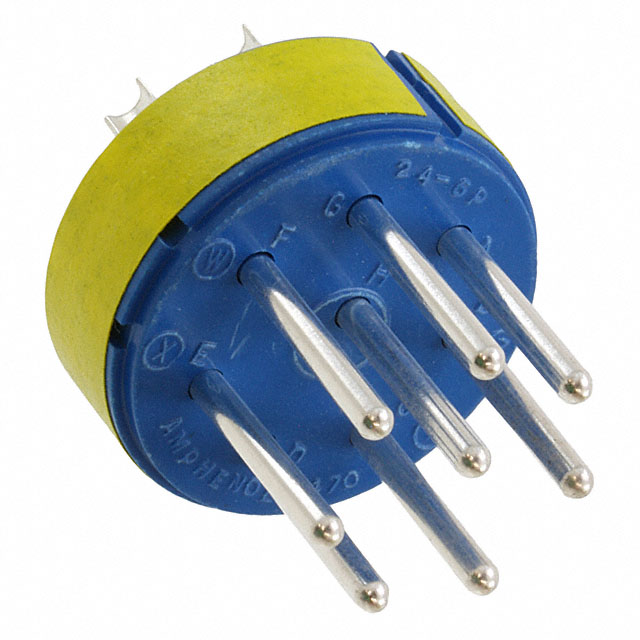

97-24-6P

Active

Amphenol Industrial Operations

CONN MALE INSERT 8P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN MALE INSERT 8P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish - Mating	Connector Type	Number of Positions	Contact Material	Orientation	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Insert Material	Features	Shielding	Shell Size - Insert [Max]	Shell Size - Insert [Min]
Amphenol Industrial Operations 97-24-21S	Silver	Female Sockets Insert	10	Copper Alloy	N	Automotive Industrial	-55 °C	125 °C	24-21	Diallyl Phthalate (DAP)	Insert Only Requires Shell	Unshielded
Amphenol Industrial Operations 97-24-28S	Silver	Female Sockets Insert	24	Copper Alloy	N	Automotive Industrial	-55 °C	125 °C		Diallyl Phthalate (DAP)	Insert Only Requires Shell	Unshielded	28	24
Amphenol Industrial Operations 97-24-6P	Silver	Insert Male Pins	8	Copper Alloy	N	Automotive Industrial	-55 °C	125 °C	24-6	Diallyl Phthalate (DAP)	Insert Only Requires Shell	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Insert, Male Pins Solder Cup
