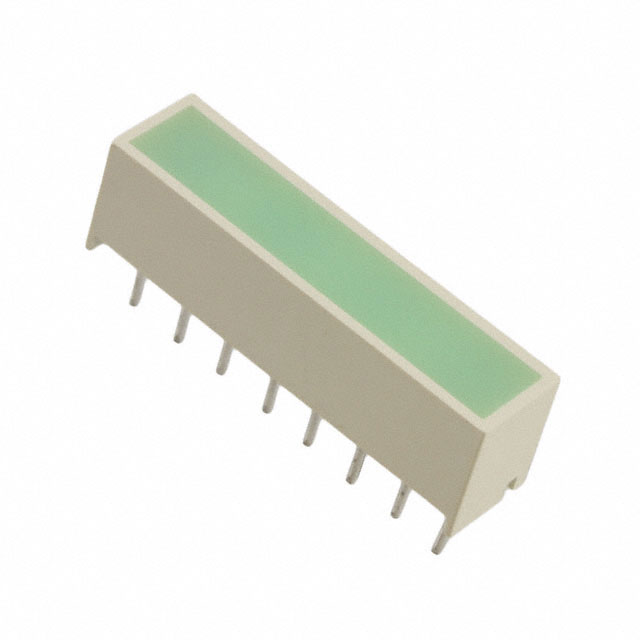

KB2550SGD

Active

Kingbright

25MA EMERALD 2.2V PLUGIN LED INDICATION - DISCRETE ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KB2550SGD

Active

Kingbright

25MA EMERALD 2.2V PLUGIN LED INDICATION - DISCRETE ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KB2550SGD

Color	Green
Configuration	Bar - Single, SIP
Current	25 mA
Lens Size [x]	19.05 mm
Lens Size [y]	3.81 mm
Lens Style	Rectangle with Flat Top
Lens Type	Tinted, Diffused
Millicandela Rating	33 mcd
Mounting Type	Through Hole
Wavelength - Peak	565 nm

KB2550 Series

Part	Current	Millicandela Rating	Configuration	Mounting Type	Lens Style	Color	Lens Size [y]	Lens Size [x]	Voltage Rating	Lens Type	Wavelength - Peak
Kingbright KB2550CGKD	150 mA	36 mcd	Bar - Single DIP	Through Hole	Rectangle with Flat Top	Green	3.81 mm	19.05 mm	2.1 V	Diffused Tinted
Kingbright KB2550SGD	25 mA	33 mcd	Bar - Single SIP	Through Hole	Rectangle with Flat Top	Green	3.81 mm	19.05 mm		Diffused Tinted	565 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.87
		50	$ 1.25
		100	$ 0.96
		500	$ 0.87
		1000	$ 0.75
		2000	$ 0.71
		5000	$ 0.69
		10000	$ 0.68
LCSC	Piece	1	$ 1.63
		200	$ 0.65
		500	$ 0.63
		1000	$ 0.62

Description

General part information

KB2550 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Green Diffused, Tinted 2.2V 25mA Rectangle with Flat Top 19.05mm x 3.81mm Through Hole
