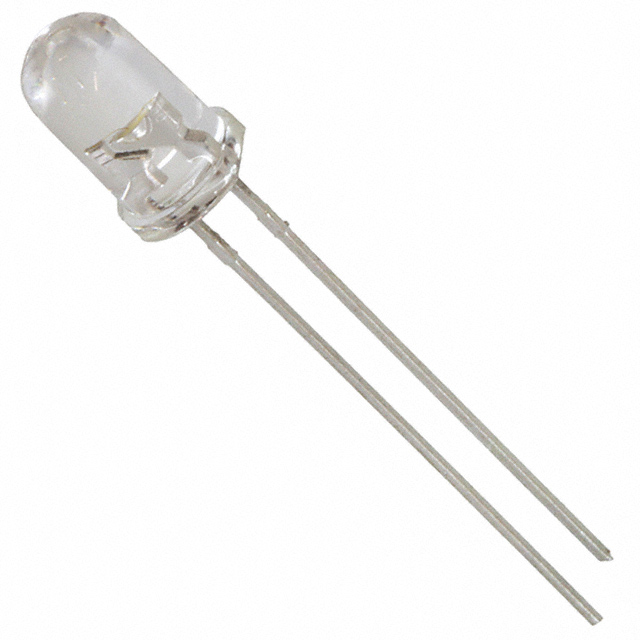

C512A-WNS-CZ0B0151

Active

Cree LED

LED UNI-COLOR WHITE 2-PIN T-1 3/4 BULK

Search across all available documentation for this part.

Active

Cree LED

LED UNI-COLOR WHITE 2-PIN T-1 3/4 BULK

Technical Specifications

Parameters and characteristics for this part

Specification	C512A-WNS-CZ0B0151

Color	Cool, White
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	13 mm
Lens Color	Colorless
Lens Size [diameter]	5 mm Dia
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating	15850 mcd
Mounting Type	Through Hole
Package / Case	Radial
Supplier Device Package [diameter]	5 mm
Viewing Angle	25 °
Voltage - Forward (Vf) (Typ)	3.2 V
Wavelength - Dominant [custom]	9000 K

Part	Mounting Type	Viewing Angle	Configuration	Millicandela Rating	Lens Transparency	Current - Test	Lens Size [diameter]	Supplier Device Package [diameter]	Lens Color	Lens Style	Wavelength - Dominant [custom]	Color	Package / Case	Height (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Height (Max) [Max]
Cree LED C512A-WNS-CZ0B0151	Through Hole	25 °	Standard	15850 mcd	Clear	20 mA	5 mm Dia	5 mm	Colorless	Round with Domed Top	9000 K	Cool White	Radial	13 mm	3.2 V
Cree LED C512A-WNN-CZ0B0151	Through Hole	25 °	Standard	15850 mcd	Clear	20 mA	5 mm Dia	5 mm	Colorless	Round with Domed Top	9000 K	Cool White	Radial		3.2 V	10.3 mm
Cree LED C512A-WNS-CZ0C0152	Through Hole	25 °	Standard	20550 mcd		20 mA	5 mm Dia	5 mm		Round with Domed Top	9000 K	Cool White	Radial	13 mm	3.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	500	$ 0.13
Digikey	Bulk	500	$ 0.23

General part information

White, Cool 9000K LED Indication - Discrete 3.2V Radial
