206-1204

Active

WAGO Corporation

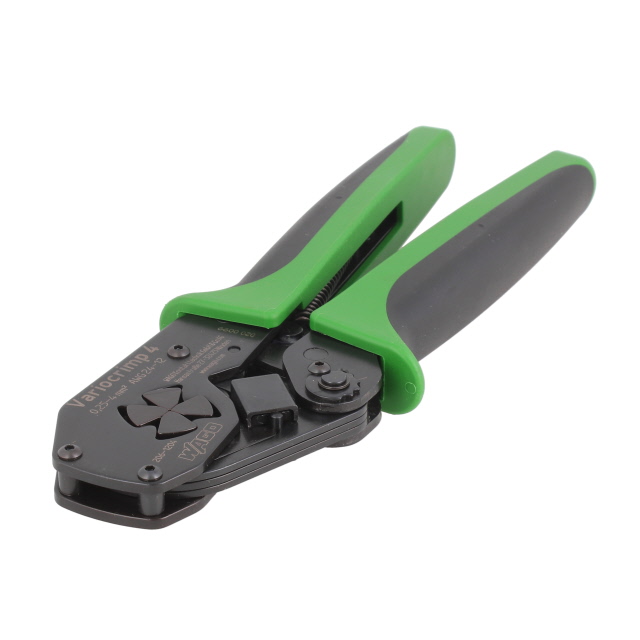

CRIMP TOOL, RATCHET, 0.25MM² TO 4MM² INSULATED AND UNINSULATED CONTACTS, VARIOCRIMP 4 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsWago Cert of Calibration Technical Data Sheet EN

206-1204

Active

WAGO Corporation

CRIMP TOOL, RATCHET, 0.25MM² TO 4MM² INSULATED AND UNINSULATED CONTACTS, VARIOCRIMP 4 SERIES

Deep-Dive with AI

DocumentsWago Cert of Calibration Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	206-1204

For Use With/Related Products	Ferrules
Ratcheting	Ratchet
Tool Type	Hand Crimper
Wire Entry Location	Side Entry
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	4 mm²
Wire Gauge or Range - mm² [Min]	0.25 mm²

206 Series

Part	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Tool Type	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Entry Location	Ratcheting	For Use With/Related Products
WAGO Corporation 206-1204	24 AWG	12 AWG	Hand Crimper	0.25 mm²	4 mm²	Side Entry	Ratchet	Ferrules
WAGO Corporation 206-1216	10 AWG	6 AWG	Hand Crimper	6 mm²	16 mm²	Side Entry	Ratchet	Ferrules

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 318.65
		5	$ 295.33
		10	$ 285.83
		25	$ 273.75
Newark	Each	1	$ 323.61
		5	$ 297.48

Description

General part information

206 Series

206-1204 is a Variocrimp 4 crimping tool for insulated and uninsulated ferrules. With "Variocrimp 4," the built-in crimping pressure control automatically adjusts force to the conductor cross-section used. Only one crimping station is needed to handle the specified conductor range.
