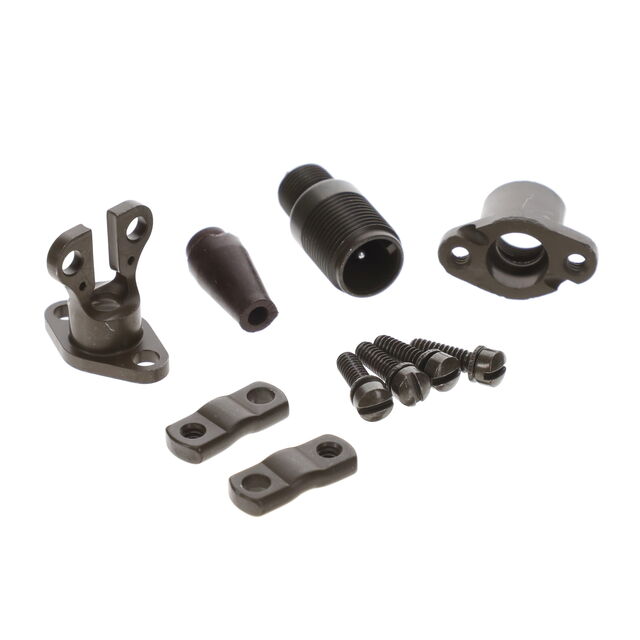

MS3101F8S-1P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3101F8S-1P

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Features	Cable Clamp, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	8S-1
Shielding	Unshielded

Part	Contact Finish - Mating	Applications	Current Rating (Amps)	Shell Material	Connector Type	Shell Size - Insert	Primary Material	Qualification	Insert Material	Features	Shell Finish	Color	Orientation	Ingress Protection	Grade	Contact Material	Mounting Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shielding
Amphenol Industrial Operations MS3101F8S-1P	Silver	Marine Military	13 A	Aluminum Alloy	Male Pins Receptacle	8S-1	Metal	MIL-DTL-5015	Neoprene	Backshell Cable Clamp	Olive Drab Chromate over Cadmium	Olive Drab	N	Environment Resistant	Military	Copper Alloy	Free Hanging (In-Line)	1	-55 °C	125 °C	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Position Circular Connector Receptacle, Male Pins Solder Cup
