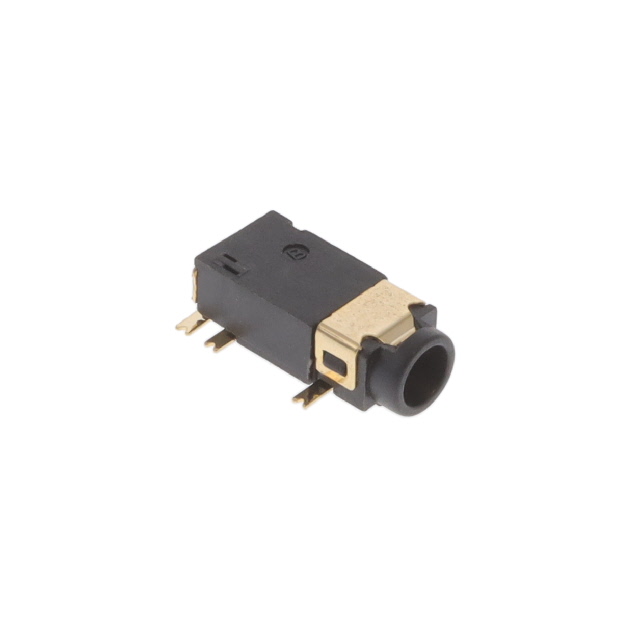

ASJ-137-I-T/R - ASJ-137-I-T-R

ASJ-137-I-T/R

Active
Adam Tech

AUDIO JACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications+1
ASJ-137-I-T/R - ASJ-137-I-T-R

ASJ-137-I-T/R

Active
Adam Tech

AUDIO JACK

Deep-Dive with AI

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications+1

Technical Specifications

Parameters and characteristics for this part

SpecificationASJ-137-I-T/R
Actual Diameter [diameter]0.142 in
Actual Diameter [diameter]3.6 mm
Body ColorBlack
Connector TypePhone Jack
Contact MaterialCopper Alloy
Contact Material - Plating [custom]Gold
Current Rating (Amps)1 A
FeaturesBoard Guide
GenderFemale
Housing MaterialThermoplastic
Industry Recognized Mating Diameter0.141 "
Industry Recognized Mating Diameter0.125 "
Industry Recognized Mating Diameter3.5 mm
Insulation ColorBlack
Internal Switch(s)Two Switches
Mounting TypeSurface Mount, Right Angle
Number of Positions/Contacts [custom]4
Number of Positions/Contacts [custom]6
ShieldingUnshielded
Signal LinesStereo
TerminationSolder
Voltage - Rated30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.01
10$ 0.85
25$ 0.80
50$ 0.76
100$ 0.73
Digi-Reel® 1$ 1.01
10$ 0.82
25$ 0.75
50$ 0.71
100$ 0.67
Tape & Reel (TR) 12000$ 0.47

Description

General part information

ASJ-137 Series

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
