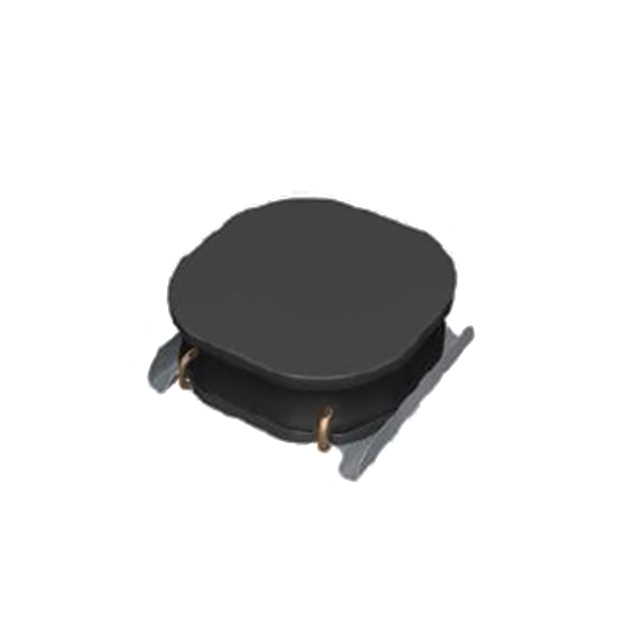

1267AY-100M=P3

Active

Murata Power Solutions Inc.

FIXED IND 10UH 3.3A 39.6MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 1267AY-1R0N=P3

1267AY-100M=P3

Active

Murata Power Solutions Inc.

FIXED IND 10UH 3.3A 39.6MOHM SMD

Deep-Dive with AI

DocumentsDatasheet 1267AY-1R0N=P3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1267AY-100M=P3

Current Rating (Amps)	3.3 A
DC Resistance (DCR) [Max]	39.6 mOhm
Height - Seated (Max) [Max]	0.157 in
Height - Seated (Max) [Max]	4 mm
Inductance	10 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Package / Case	Nonstandard
Shielding	Shielded
Size / Dimension [x]	8.3 mm
Size / Dimension [x]	0.327 in
Size / Dimension [y]	8.3 mm
Size / Dimension [y]	0.327 in
Tolerance	20 %
Type	Wirewound, Drum Core

1267AY Series

Part	Tolerance	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Material - Core	Mounting Type	Shielding	Package / Case	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)
Murata Power Solutions Inc. 1267AY-4R7N=P3	30 %	Drum Core Wirewound	8.3 mm	8.3 mm	0.327 in	0.327 in	5.1 A	20.4 mOhm	100 kHz	Ferrite	Surface Mount	Shielded	Nonstandard	4.7 ÁH	0.157 in	4 mm
Murata Power Solutions Inc. 1267AY-3R3N=P3	30 %	Drum Core Wirewound	8.3 mm	8.3 mm	0.327 in	0.327 in	6.1 A	15.6 mOhm	100 kHz	Ferrite	Surface Mount	Shielded	Nonstandard	3.3 µH	0.157 in	4 mm
Murata Power Solutions Inc. 1267AY-470M=P3	20 %	Drum Core Wirewound	8.3 mm	8.3 mm	0.327 in	0.327 in	1.6 A		100 kHz	Ferrite	Surface Mount	Shielded	Nonstandard	47 µH	0.157 in	4 mm	168 mOhm
Murata Power Solutions Inc. 1267AY-100M=P3	20 %	Drum Core Wirewound	8.3 mm	8.3 mm	0.327 in	0.327 in	3.3 A	39.6 mOhm	100 kHz	Ferrite	Surface Mount	Shielded	Nonstandard	10 µH	0.157 in	4 mm
Murata Power Solutions Inc. 1267AY-150M=P3	20 %	Drum Core Wirewound	8.3 mm	8.3 mm	0.327 in	0.327 in	2.6 A	58.8 mOhm	100 kHz	Ferrite	Surface Mount	Shielded	Nonstandard	15 µH	0.157 in	4 mm
Murata Power Solutions Inc. 1267AY-1R5N=P3	30 %	Drum Core Wirewound	8.3 mm	8.3 mm	0.327 in	0.327 in	8.2 A	10.8 mOhm	100 kHz	Ferrite	Surface Mount	Shielded	Nonstandard	1.5 µH	0.157 in	4 mm
Murata Power Solutions Inc. 1267AY-2R2N=P3	30 %	Drum Core Wirewound	8.3 mm	8.3 mm	0.327 in	0.327 in	7.4 A	13.2 mOhm	100 kHz	Ferrite	Surface Mount	Shielded	Nonstandard	2.2 µH	0.157 in	4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.60
		10	$ 0.52
		25	$ 0.47
		50	$ 0.43
		100	$ 0.38
		250	$ 0.36
		500	$ 0.31
	Digi-Reel®	1	$ 0.59
		10	$ 0.46
		25	$ 0.42

Description

General part information

1267AY Series

10 µH Shielded Drum Core, Wirewound Inductor 3.3 A 39.6mOhm Max Nonstandard
