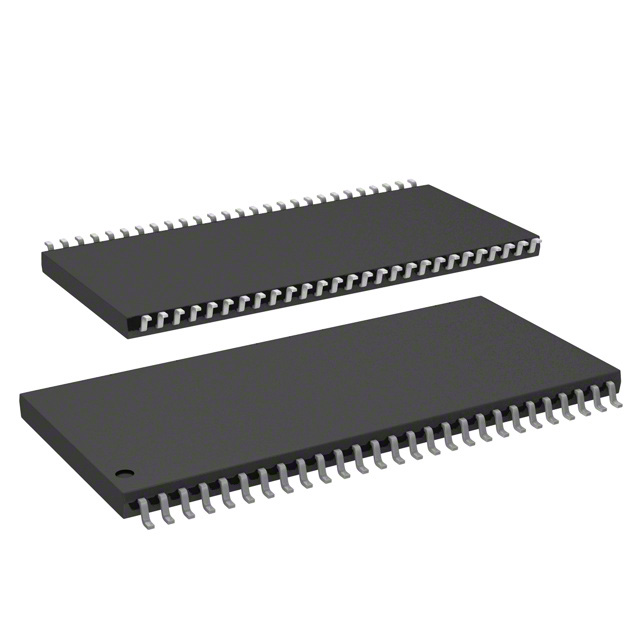

W9864G6KH-5 TR

Active

Winbond Electronics

IC DRAM 64MBIT PAR 54TSOP II

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

W9864G6KH-5 TR

Active

Winbond Electronics

IC DRAM 64MBIT PAR 54TSOP II

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	W9864G6KH-5 TR

Access Time	5 ns
Clock Frequency	200 MHz
Memory Format	DRAM
Memory Interface	Parallel
Memory Organization	4M x 16
Memory Size	64 Gbit
Memory Type	Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Supplier Device Package	54-TSOP II
Technology	SDRAM
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

W9864G6 Series

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Memory Interface	Memory Organization	Memory Size	Memory Type	Clock Frequency	Mounting Type	Technology	Memory Format	Access Time	Package / Case
Winbond Electronics W9864G6JH-5	3.6 V	3 V	70 °C	0 °C	54-TSOP II	Parallel	4M x 16	64 Gbit	Volatile	200 MHz	Surface Mount	SDRAM	DRAM	5 ns
Winbond Electronics W9864G6JB-6I TR	3.6 V	3 V	85 °C	-40 °C	60-VFBGA (6.4x10.1)	LVTTL	4M x 16	64 Gbit	Volatile	166 MHz	Surface Mount	SDRAM	DRAM	5 ns	60-TFBGA
Winbond Electronics W9864G6JH-6I	3.6 V	3 V	85 °C	-40 °C	54-TSOP II	Parallel	4M x 16	64 Gbit	Volatile	166 MHz	Surface Mount	SDRAM	DRAM	5 ns
Winbond Electronics W9864G6KT-6	3.6 V	3 V	70 °C	0 °C	54-TFBGA (8x8)	LVTTL	4M x 16	64 Gbit	Volatile	166 MHz	Surface Mount	SDRAM	DRAM	5 ns	54-VFBGA
Winbond Electronics W9864G6JB-6	3.6 V	3 V	70 °C	0 °C	60-VFBGA (6.4x10.1)	Parallel	4M x 16	64 Gbit	Volatile	166 MHz	Surface Mount	SDRAM	DRAM	5 ns	60-TFBGA
Winbond Electronics W9864G6KH-5	3.6 V	3 V	70 °C	0 °C	54-TSOP II	Parallel	4M x 16	64 Gbit	Volatile	200 MHz	Surface Mount	SDRAM	DRAM	5 ns
Winbond Electronics W9864G6JT-6	3.6 V	3 V	70 °C	0 °C	54-TFBGA (8x8)	Parallel	4M x 16	64 Gbit	Volatile	166 MHz	Surface Mount	SDRAM	DRAM	5 ns	54-TFBGA
Winbond Electronics W9864G6KH-6 TR	3.6 V	3 V	70 °C	0 °C	54-TSOP II	Parallel	4M x 16	64 Gbit	Volatile	166 MHz	Surface Mount	SDRAM	DRAM	5 ns
Winbond Electronics W9864G6KH-5 TR	3.6 V	3 V	70 °C	0 °C	54-TSOP II	Parallel	4M x 16	64 Gbit	Volatile	200 MHz	Surface Mount	SDRAM	DRAM	5 ns
Winbond Electronics W9864G6IH-6	3.6 V	3 V	70 °C	0 °C	54-TSOP II	Parallel	4M x 16	64 Gbit	Volatile	166 MHz	Surface Mount	SDRAM	DRAM	5 ns

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 1.26

Description

General part information

W9864G6 Series

SDRAM Memory IC 64Mbit Parallel 200 MHz 5 ns 54-TSOP II
