Q-2V05H0003072I
ActiveAmphenol Custom Cable

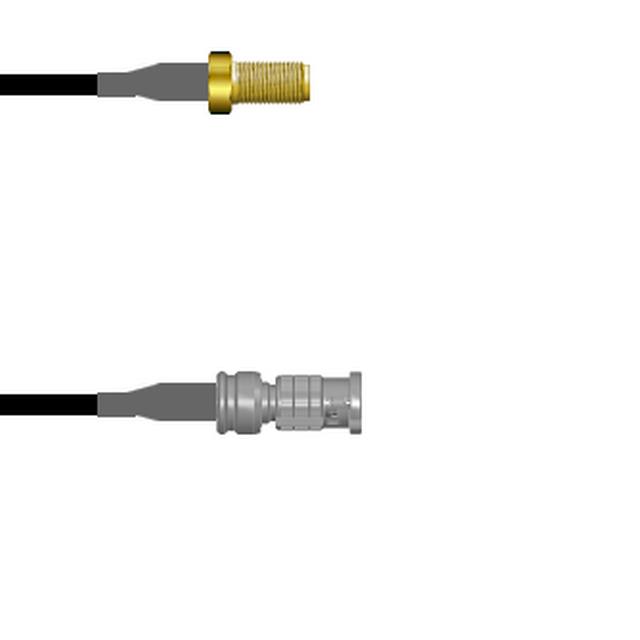

COAX CBL HD-BNC TO SMA 6'
Deep-Dive with AI
Search across all available documentation for this part.
Q-2V05H0003072I
ActiveAmphenol Custom Cable
COAX CBL HD-BNC TO SMA 6'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2V05H0003072I |
|---|---|
| 1st Connector | HD-BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-174 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 1 GHz |
| Length | 6 ft |
| Length | 72 in |
| Length | 1.8 m |
| Overall Impedance | 50 Ohms |
| Style | HD-BNC to SMA |
Q-2V05H0 Series
| Part | 2nd Contact Gender | Frequency - Max [Max] | 1st Contact Gender | Features | 2nd Connector | 2nd Connector Mounting Type | Style | Length | Length | Overall Impedance | Color | Cable Impedance | Cable Type | 1st Connector | 1st Connector Mounting Type | Connector Impedance | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | Female | 3 GHz | Male | Shielded | SMA Jack | Free Hanging (In-Line) | HD-BNC to SMA | 12 " | 304.8 mm | 50 Ohms | Copper | 50 Ohms | RG-316 | HD-BNC Plug | Free Hanging (In-Line) | 50 Ohms | |
Amphenol Custom Cable | Female | 1 GHz | Male | Shielded | SMA Jack | Free Hanging (In-Line) | HD-BNC to SMA | 72 in | 1.8 m | 50 Ohms | Black | 50 Ohms | RG-174 | HD-BNC Plug | Free Hanging (In-Line) | 50 Ohms | 6 ft |
Amphenol Custom Cable | Female | 3 GHz | Male | Shielded | SMA Jack | Free Hanging (In-Line) | HD-BNC to SMA | 3 in | 76.2 mm | 50 Ohms | Copper | 50 Ohms | RG-316 | HD-BNC Plug | Free Hanging (In-Line) | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 101.55 | |
| 25 | $ 99.58 | |||
| 50 | $ 97.61 | |||
| 100 | $ 95.63 | |||
| 250 | $ 93.66 | |||
Description
General part information
Q-2V05H0 Series
Cable Assembly Coaxial HD-BNC to SMA RG-174 72.0" (1.8m) 6.0'
